FEATURES: The 150 GPM Avgas Jet A Skid System are designed to offload transport, recirculate fuel and bottom load refuelers with direct into plane fueling as optional.

ADDITIONAL FEATURES: Blackmer GNXH3A pump with 3ph motor, TCS 700 series meter, facet latest edition FWS, Gammon Water Defense System, Deadman Controls w/25′ Cord and Handle, Transport Inlet Connection w/Shutoff Valve/Outlet Connection, Schedule 40 Stainless Steel Piping and Flanges, Stainless Steel Skid and Framework w/Spill Containment, Control Panel w/Emergency Stop, Pump Pressure Gauge, DP Gauge w/Test Valve and Pump Start/Stop Controls, 2.5″ x 15′ API 1529 Fueling Hose w/Underwing Nozzle for Bottom Loading Refuelers, Spring Rewind Static Reel w/50′ Coated Cable and 100-Amp Clamp, NFPA 407 Decal Package, (2) 20LB Fire Extinguishers, Electronic Operation and Maintenance Manual Supplied, Piping Stubbed for Tie-In of Additional Tank in the Future, and Morrison emergency valves.

OPTIONAL: Scully system as optional, and stainless steel construction with spill pan. Fully Enclosed Cabinet, [...]

Your manual will be uploaded soon. Please check back for updates!

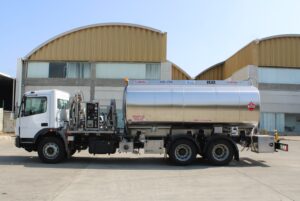

20,000 KL jet A1 refueler, with NFPA 407 and JIG-13 Compliance, two-man cab, overturn protection, two 20” manholes with 10” fill openings and vents, two 20” inspection manholes, and two 1” water drain valves. Meets all requirements of DOT 406 specifications.

Chassis:

• New Mercedes Atego 2730
• Automated transmission
• Diesel Engine EURO VI
• Exhaust according to NFPA 407
• Heavy-duty rear bumper
• Engine Fire System
• 24 VDC
• Left-Hand Drive
• Factory white cab painted

Tank:

• Tank 20,000 Liter semi-elliptical constructed in stainless steel
• (2) Inspect manholes
• Pneumatic vent
• 4” internal valve for loading w/ pilot for jet level sensor
• High-level w/ ultrasonic sensor and pneumatic shutoff valve
• 3” emergency valve for unloading w/ manual shutoff valve
• Water drains
• Bottom load system with pre-check test
• Overfill system for high and high-high level w/ shutoff load.

Pump:

• Gorman Rupp 3″ PTO Driven Pump w/ shaft driven
• · 2” Mechanic bypass
• · 2.5” gauge 0 – [...]

15,000 U.S. gallons jet a refueler, with 15,000 Gallon stainless steel tank fully baffled, two man cab, overturn protection, two 20” manholes with 10” fill openings and vents, two 20” inspection manholes, and two 1” water drain valves. Meets all requirements of DOT 406 specifications.

Chassis – Refueler is built on a heavy-duty, EAM RF10RD Custom Airport Chassis with Cummins Diesel Engine – Tier IV, Allison Automatic Transmission. Detailed specifications available upon request.

Standard Dimensions – 46’L x 120”W x 117”H

PUMP: Hydraulically driven Gorman-Rupp centrifugal type.

FILTER/SEPARATOR: Latest Edition Horizontal Filter/Separator – 800 GPM (3,000 LPM) rated with differential pressure gauge, air eliminator, water defense and drain valve. F/S meets API 1581 specifications and qualification procedures for solids and water removal.

VENTURI: Two, sized to compensate for pressure loss.

FLOW METER: One meter, 800 gpm rated and panel mounted TCS meter w/TCS3000 electronic register and cellular modem included as standard equipment (options available).

DEADMAN [...]

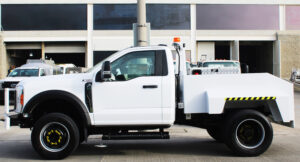

New 1,500 gallon (5,675 Liter) diesel dispensing refueler, built on Ford F550 4×4 Chassis, with gasoline engine, automatic transmission
and 1,500 gallon stainless steel tank. Meets all requirements of DOT 406 specifications.

ADDITIONAL FEATURES: The features include 20 GPM (75 LPM) diesel dispensing system, TCS meter with Veeder Root mechanical register head
Hannay electric rewind hose reel w/OPW nozzle, LED light package, DEF tank/dispensing system, and (2) 20lb BC fire extinguishers.

SAFETY FEATURES: All required safety features including static reel with 50’ cable and bonding clamp, brake interlock system, emergency shut down the system, differential pressure gauge, pump pressure gauge and nozzle pressure gauges. Additional features include Scully Intellicheck 3 System, (2) 20LB BC fire extinguishers, rear camera system, passenger’s side camera system, fire suppression system, bottom load w/high-level shutoff and static grounding reel.

COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.

The above-listed items are [...]

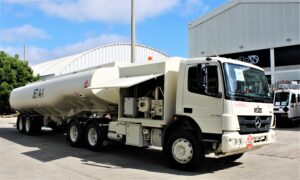

40,000 KL jet A1 refueler, with NFPA 407 and JIG-13 Compliance. Meets all requirements of DOT 406 specifications.

Chassis:

• New Mercedes Atego 2730
• Automated transmission
• EURO VI diesel engine
• Exhaust system compliant with NFPA 407
• 5th wheel coupling
• Heavy-duty rear bumper
• Engine fire suppression system
• Air conditioning
• Left-hand drive
• Factory-painted white cab

Tank:

• Tank 40,000 Liter semi-elliptical constructed in stainless steel
• (2) Inspect manholes
• Pneumatic vent
• 4” internal valve for loading with a pilot for the jet level sensor
• High-level w/ ultrasonic sensor and pneumatic shutoff valve
• 3” emergency valve for unloading with manual shutoff valve
• Water drains
• Bottom load system with pre-check test
• Overfill system for high and high-high level w/ shutoff load

Pump:

• Gorman Rupp 3″ PTO Driven Pump w/ shaft driven
• · 2” Mechanic bypass
• · 2.5” [...]

10,000 U.S. gallons jet a refueler, with 10,000 Gallon stainless steel tank fully baffled, single man cab and two man cab options., overturn protection, two 20” manholes with 10” fill openings and vents, two 20” inspection manholes, and two 1” water drain valves. Meets all requirements of DOT 406 specifications.

Chassis – Refueler is built on a heavy-duty, EAM RF10RD Custom Airport Chassis with Cummins Diesel Engine – Tier IV, Allison Automatic Transmission. Detailed specifications available upon request.

Standard Dimensions – 46’L x 120”W x 117”H

PUMP: Hydraulically driven Gorman-Rupp centrifugal type.

FILTER/SEPARATOR: Latest Edition Horizontal Filter/Separator – 800 GPM (3,000 LPM) rated with differential pressure gauge, air eliminator, water defense and drain valve. F/S meets API 1581 specifications and qualification procedures for solids and water removal.

VENTURI: Two, sized to compensate for pressure loss.

FLOW METER: One meter, 800 gpm rated and panel mounted TCS meter w/TCS3000 electronic register and cellular modem included as [...]

CHASSIS: Built on Isuzu NPR HD 4×2 chassis (Ford F series optional)

FEATURES: The potable water truck options include gas engine, automatic transmission with diesel engine optional, fire suppression system, 1,000 Gallon (3,785 Liter) tank constructed from 316 SS, cold weather package, hydraulically driven 2″ pacer pump, Fillrite mechanical meter and register with digital meter optional, fixed platform with hydraulic platform for widebody servicing optional and fill hose.

OPTIONS: The above listed items are for a standard Garsite ground service equipment. All units can be customized to fit your specific requirements. Please contact your Garsite representative for a complete list of available options and configurations.

ASME ‘U’ and ‘R’ Certified Facility

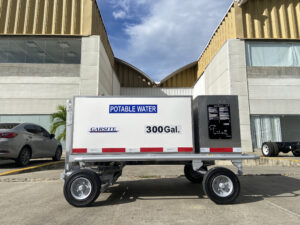

FEATURES: The potable water cart options include a four wheel cart with foldable tongue, 300 gallon (1,135 Liter) tank constructed from 316SS
cold weather package, crash bars, Flojet 12VDC pump kit, Fillrite mechanical meter and register with a digital meter as optional, and fill hose

OPTIONS: The above listed items are for a standard Garsite ground service equipment. All units can be customized to fit your specific requirements. Please contact your Garsite representative for a complete list of available options and configurations.

ASME ‘U’ and ‘R’ Certified Facility
