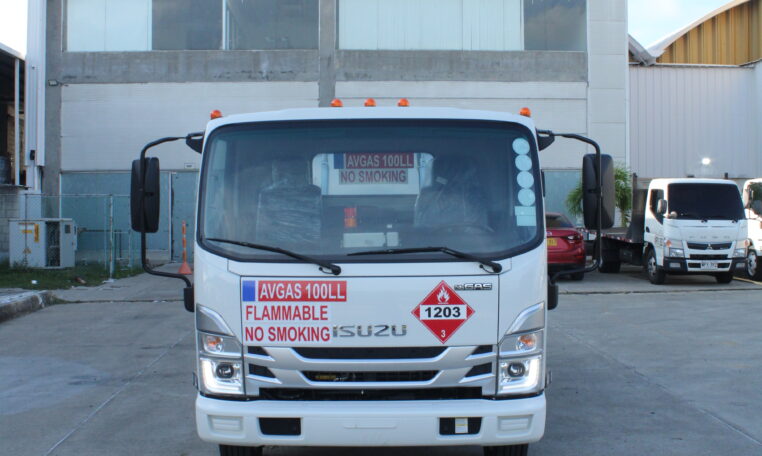

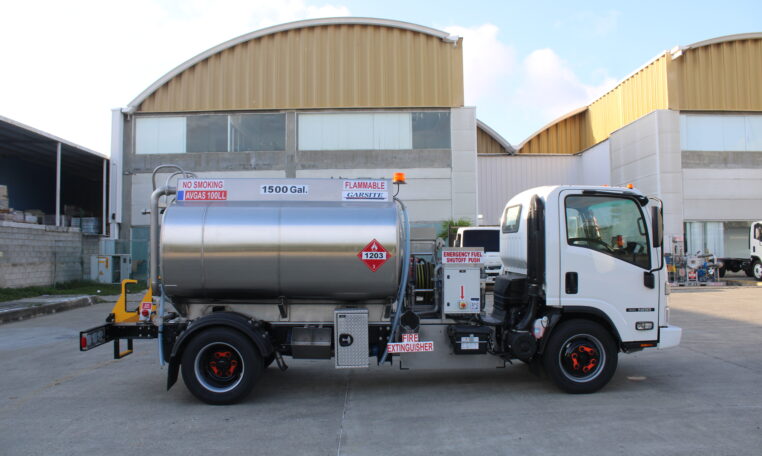

Avgas Refueler with 1,500 U.S. gallon aluminum tank fully baffled, single compartment, overturn protection, 20” manhole with 10” fill, and pressure vacuum vents.

Chassis – Isuzu NPR HD chassis, gasoline engine, automatic transmission. Diesel and cab-over models are available. Chassis to Be Factory White, Bare Stainless Steel Tank, Steel Components Painted One Color, Customer and NFPA 407 Decal Package Applied. (Detailed specifications available upon request.)

• Heavy-Duty Rear Bumper, Master Battery Disconnect Switch, Rotating Amber Beacon Light, Stainless Steel Ladder Brackets
• New 1,500 Gallon Stainless Steel Tank Built By NFPA 385 and DOT 406
• Tank-Top Bi-Line for Fall Protection

DISPENSING SYSTEM:  New 20 GPM Dispensing System w/One Multi-Wrap Overwing Reel w/Electric Rewind Built In Accordance with NFPA 407

• 1″ x 50′ API Fueling Hose w/OPW 295SA0135 Overwing Nozzle
• Dispensing System Located in a Module Directly Behind the Driver’s Cabin, Fabricated from Stainless Steel

PUMP: Positive displacement type, PTO driven, Pump Pressure Gauge, Schultz Differential Pressure Gauge w/Test Valve, Interlock System, Master Disconnect Switch, Emergency Shutoff Systems, Static Grounding Reel, (2) 20Lb Fire Extinguishers

FILTER/MONITOR: 20 GPM / 150 LPM filter/monitor with built-in differential gauge, air eliminator, and pressure relief.

METER: TCS Meter with TCS3000 Electronic Register Head and TCS Cellular Modem (Optional)

HOSE REEL: Sized for 1½” x 50’ hose, non-ferrous internals, explosion-proof electric rewind motor, and auxiliary manual rewind. A shut-off valve is installed immediately upstream of the hose reel.

HOSE: One 1” x 50’ aviation fueling hose with N/R male couplings, certified to API 1529.

NOZZLE: One avgas refueler overwing nozzle with swivel and 100 mesh strainer.

BOTTOM LOADING: Includes a jet level sensor control system for automatic high-level shut-off with precheck. Adapter and dust cap to be specified with each truck to match the loading facility. A shut-off valve shall be supplied immediately downstream of the bottom-load adapter.

PIPING: Schedule 10 aluminum piping – 150 PSI rated working pressure.

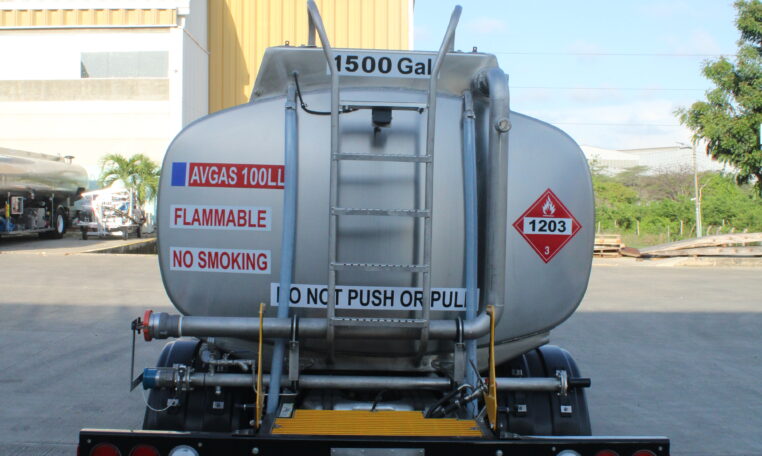

LADDER BRACKETS: On rear bumper.

TEST: Flow tested with fuel for performance to rated specifications.

FINISH: Cab painted factory white. Aluminum tank in a natural polished finish. Equipment painted silver.

SAFETY FEATURES: Static reel with 50’ cable and bonding clamp, brake interlock system, emergency shut down system and two fire extinguishers.

COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.

ADDITIONAL OPTIONS:

Diesel Chassis

• Upgrade from Gas to Diesel Chassis

40 GPM Dispensing System Upgrade

• Upgrade to 40 GPM dispensing with PTO-driven Blackmer pump TCS3000 Electronic Register Head

• Epson electronic printer (installed in cab)

Cellular Modem Kit

• Installation of the TCS cellular modem

Speed Limiter

• Installation of heavy-duty speed limiter

Rear Camera System

• Backup camera system with LCD display in the driver’s cabin

Ladder Storage

• Fold-down ladder bracket installation

Chock Block Holder

• Installation of the chock block holder

The above-listed items are for a standard Garsite Avgas Refueler. Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
