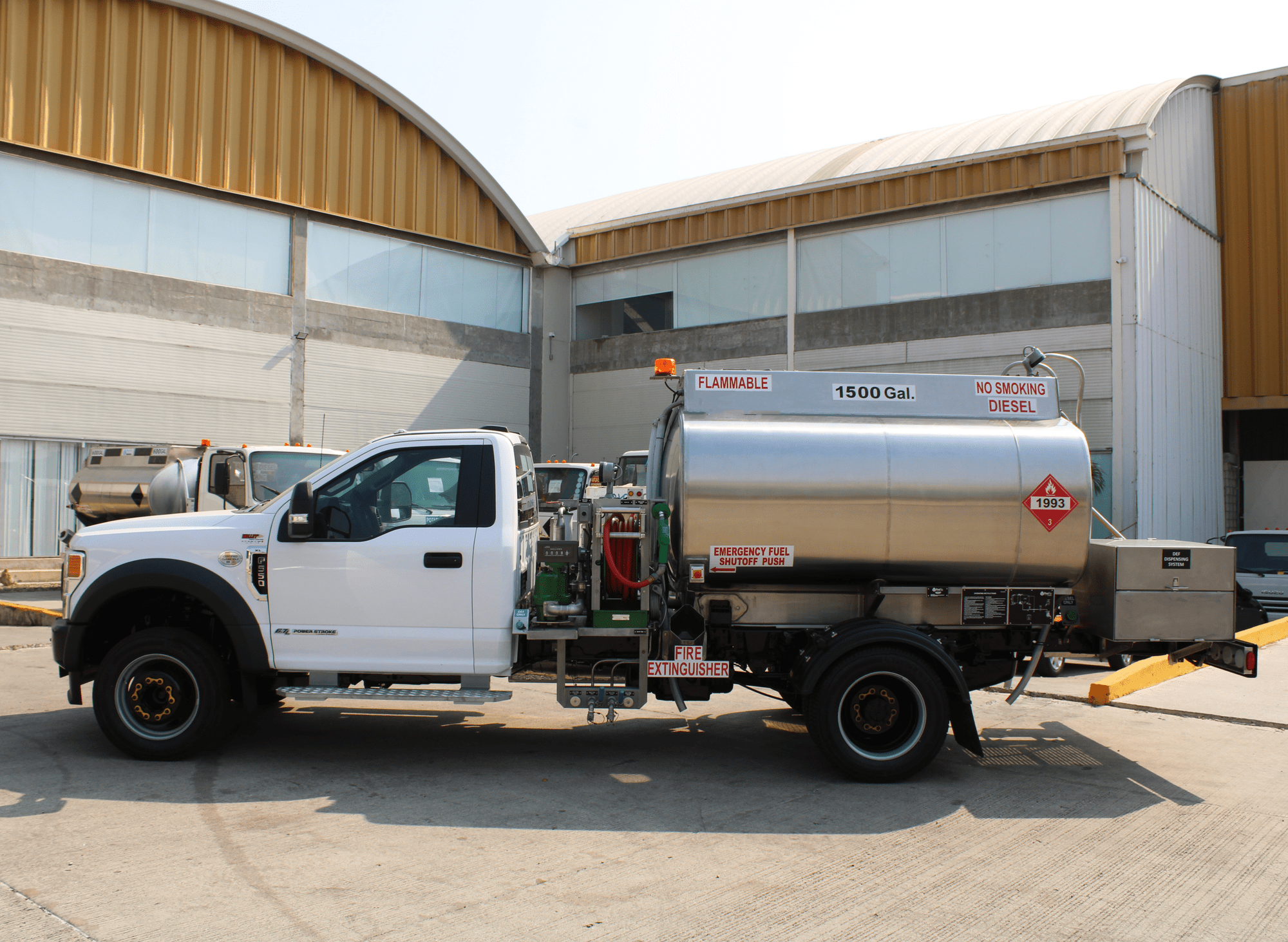

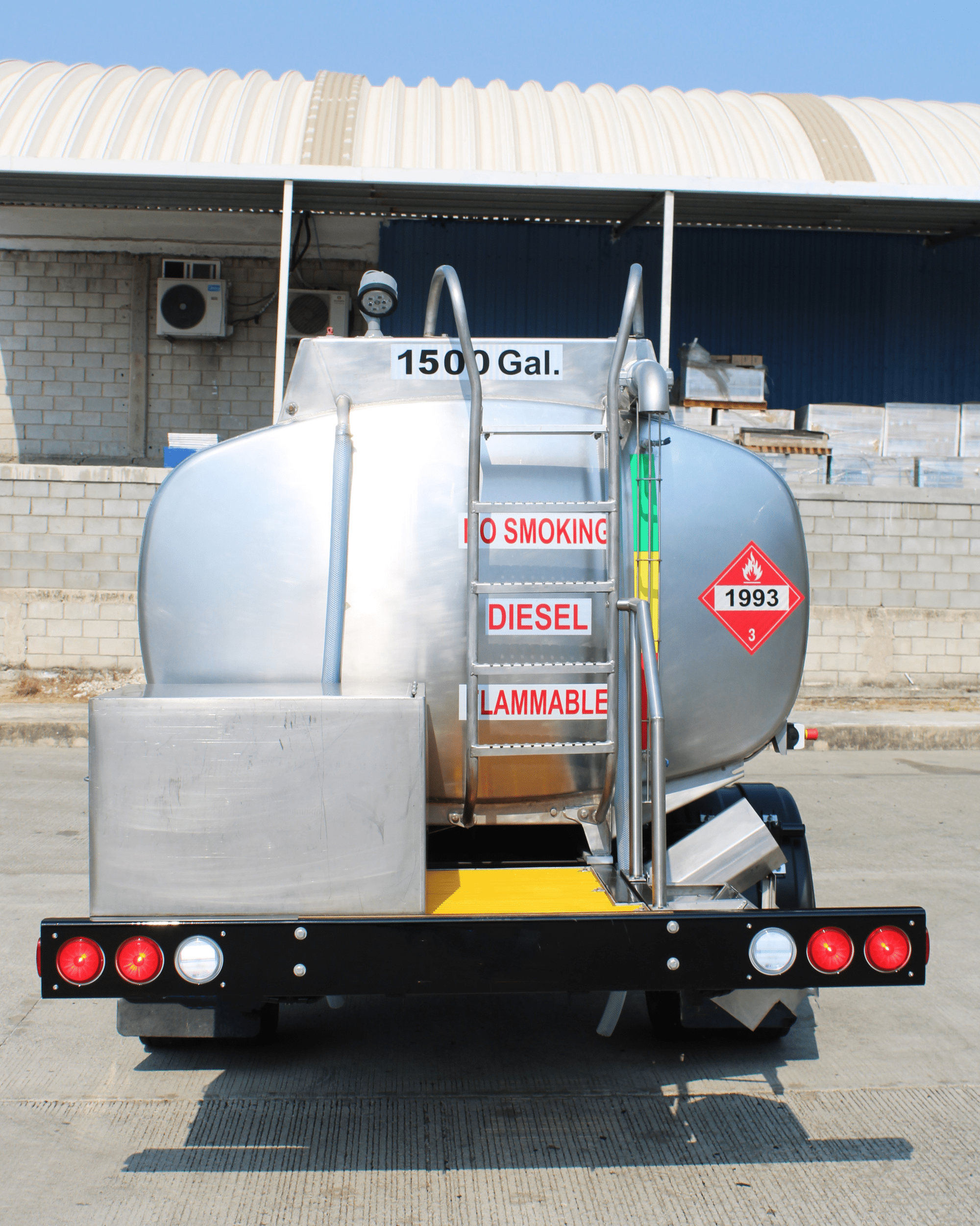

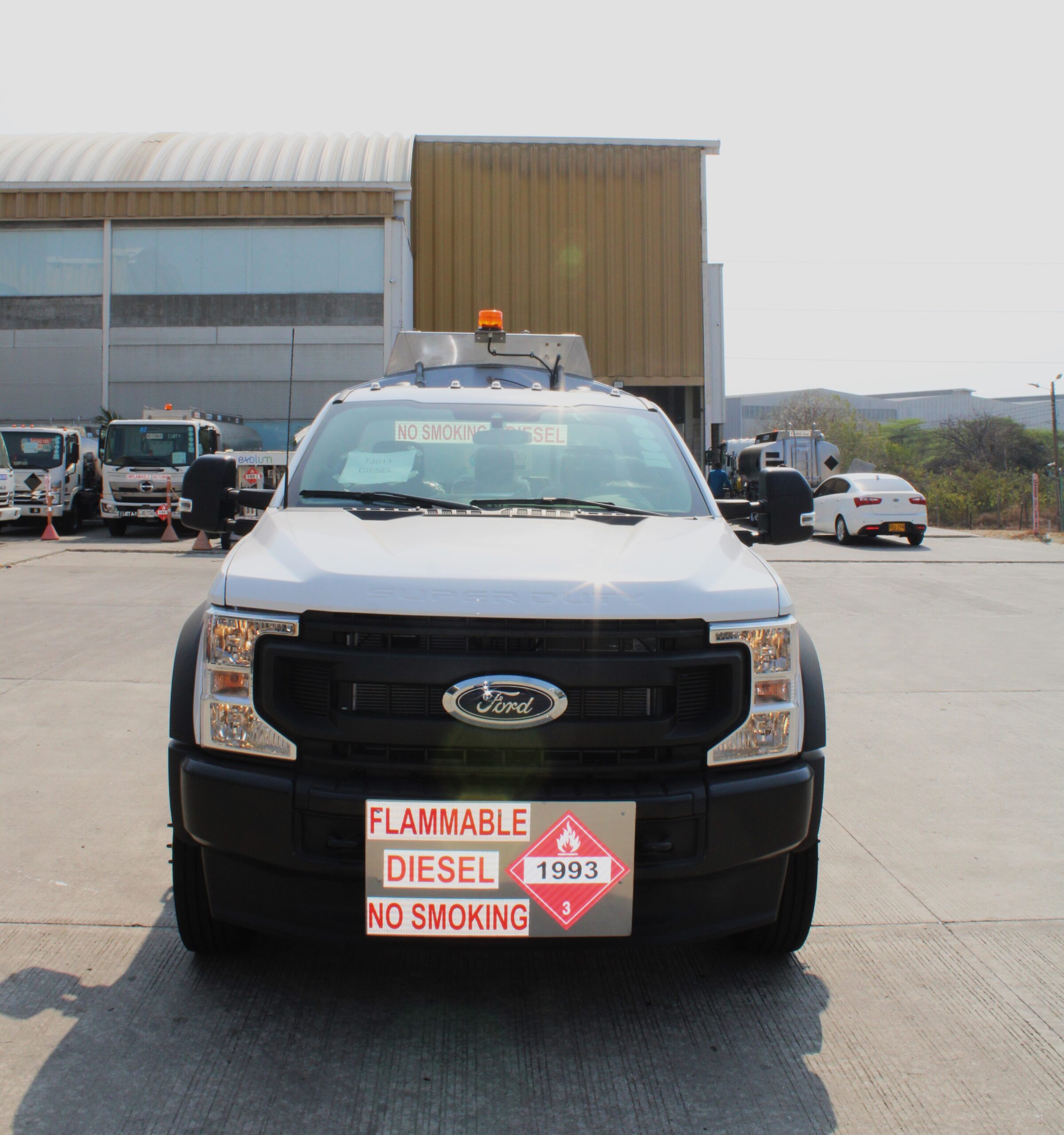

2022 1,500 gallons (5,675 Liter) diesel refueler, built on Ford F550 4×4 Chassis, with gasoline engine, automatic transmission, and 1,500-gallon stainless steel tank. Meets all requirements of DOT 406 specifications.

ADDITIONAL FEATURES: The features include 20 GPM (75 LPM) diesel dispensing system, TCS meter with Veeder Root mechanical register head Hannay electric rewind hose reel w/OPW nozzle, LED light package, DEF tank/dispensing system, and (2) 20lb BC fire extinguishers, 50′ Fueling Hose w/OPW 7H Series Diesel Nozzle and Swivel, Dispensing System Located in a Module Directly Behind the Driver’s Cabin Fabricated from Stainless Steel, Filrite Constant Duty Electric Pump w/Activation Switch on Control Panel, Low-Level Float in Tank- TCS Meter w/Veeder Root Mechanical Register Head in Gallons or Liters (Customer Preference), Canister Style Filter Vessel w/Spin on Element, Bottom Load System w/Primary High-Level Shutoff (Mounted on Driver’s Side of Unit)- 25-Gallon (95-Liter) DEF Storage Tank w/Dispensing System – Stainless Steel Enclosed Cabinet, Stainless Steel Sense and Drain Lines, Pump Pressure Gauge, Interlock System, Master Disconnect Switch, Emergency Shutoff System, (2) 20Lb Fire Extinguishers, Chassis to Be Factory White, Bare Stainless Steel Tank, Steel Components Painted One Color, Customer and NFPA 407 Decal Package Applied, Electronic Operation and Maintenance Manual Supplied.

SAFETY FEATURES: All required safety features including static reel with 50’ cable and bonding clamp, brake interlock system, emergency shut down the system, differential pressure gauge, pump pressure gauge, and nozzle pressure gauges. Additional features include the Scully Intellicheck 3 System, (2) 20LB BC fire extinguishers, rear camera system, passenger’s side camera system, fire suppression system, bottom load w/high-level shutoff, and static grounding reel.

ADDITIONAL UPGRADES:

• Lockable and Weather-Proof Aluminum Storage Container
• Electronic Register Upgrade to a TCS3000 Electronic Register Head
• Cab-Mounted Epson TMU-295 Electronic Ticket Printer
• Cellular Modem
• Tank Top Safety System

COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.

The above-listed items are for a standard Garsite 1,500-gallon diesel refueler. Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
