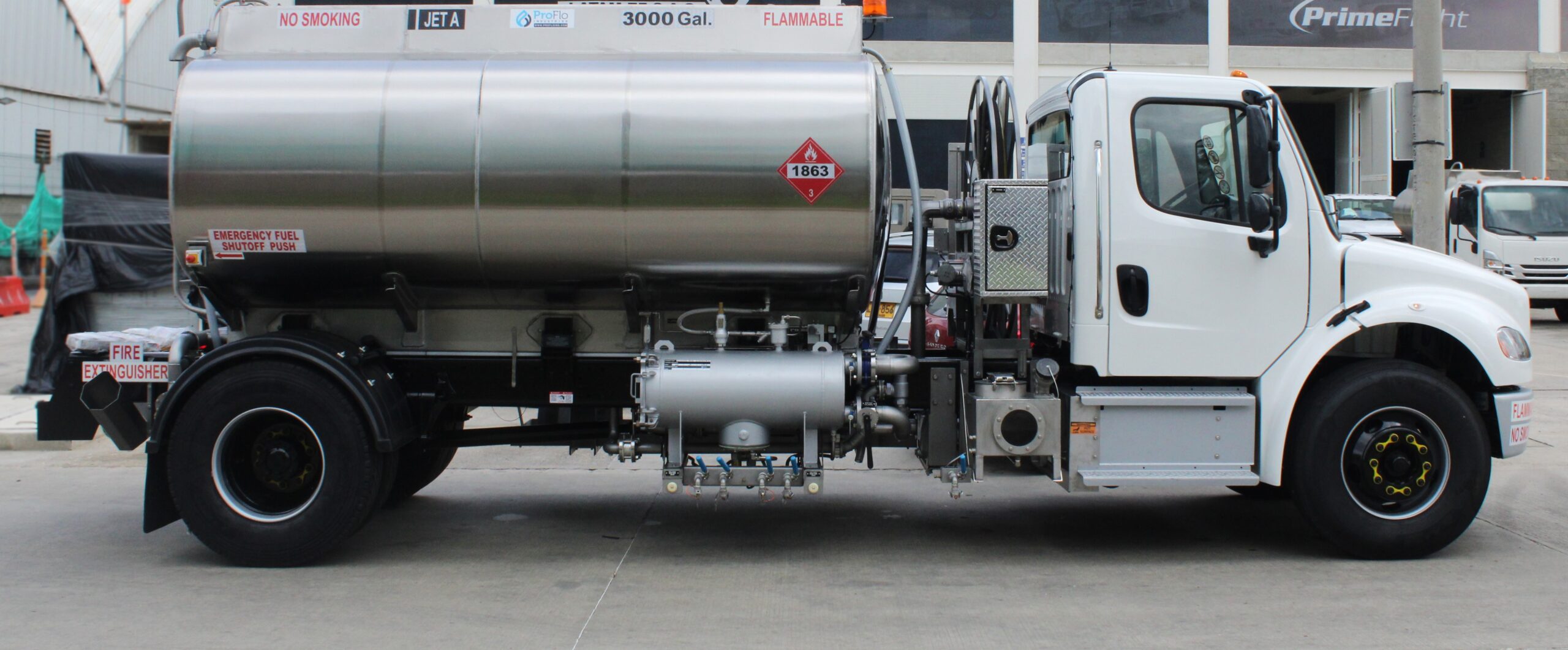

Garsite 3,000 Gallon Jet Refueler

Garsite has new 3,000-gallon (11,350 liters) Jet refuelers in stock and available for immediate delivery.

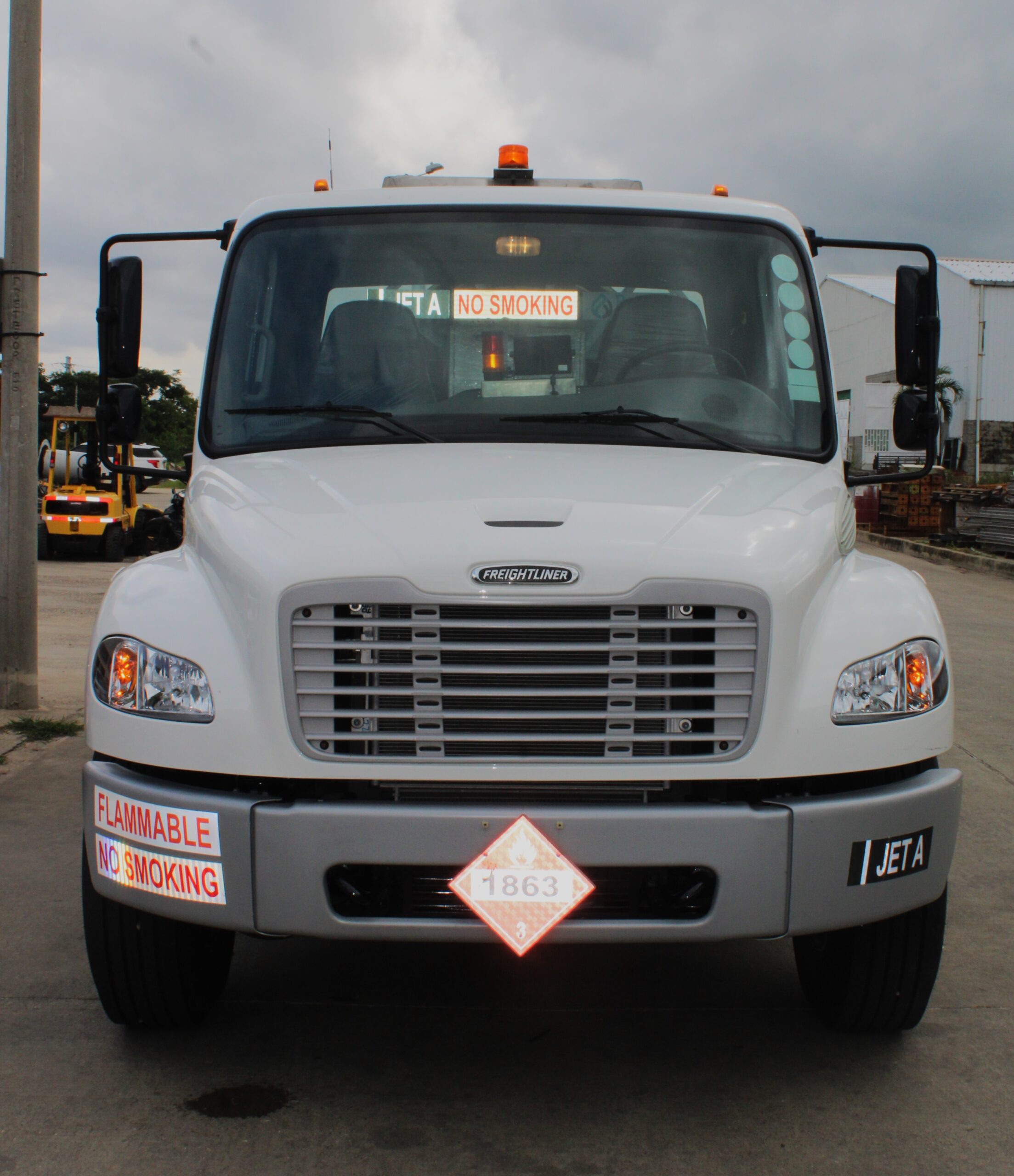

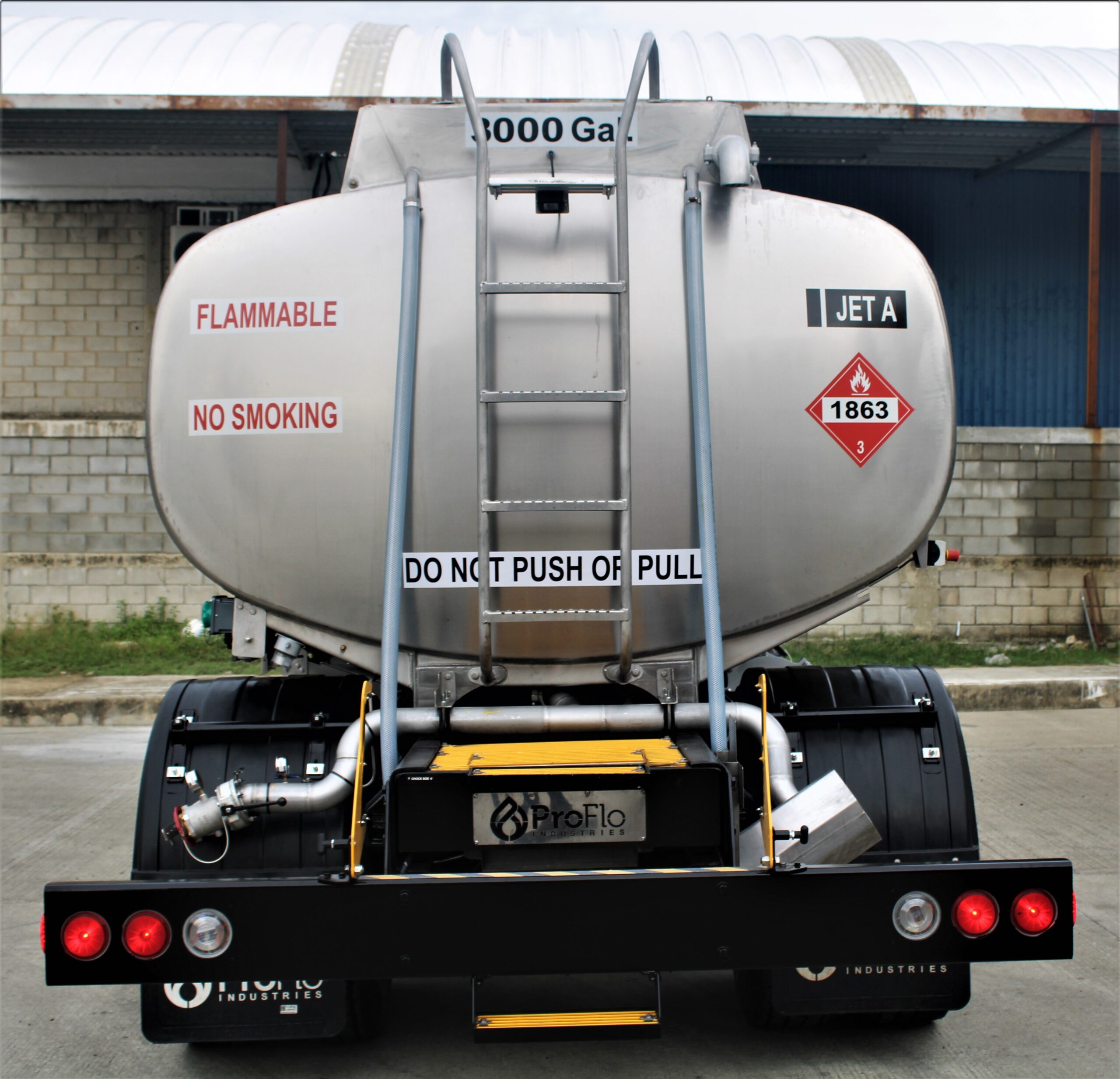

FEATURES INCLUDE: Ford F750 or Freightliner M2-106 4×2 Chassis, Gasoline Engine (Diesel Engine Optional), Automatic Transmission, 3,000 Gallon (11,350 Liter) Stainless Steel Tank.

STANDARD DIMENSIONS: 26’L x 96” W x 116” H

PUMP: Centrifugal type, PTO driven, hot shift. 300 GPM / 1,350LPM.
FILTER/SEPARATOR: Latest edition horizontal filter/separator – 300 GPM rated with differential pressure gauge, air eliminator, water defense and drain valve. F/S meets API 1581 specifications and qualification procedures for solids and water removal.
FLOW METER: One meter, 300 GPM rated and panel mounted TCS 3000 included as standard equipment (options available).
VENTURI: Sized to compensate for pressure loss.
DEADMAN AND PRESSURE CONTROLS: Electrically operated inline deadman/pressure control valve provides primary pressure control. Secondary pressure control is regulated by a mechanical hose-end control valve.
HOSE REELS: Two reels; one single wrap sized for 2½” x 50’ hose, and one sized for 1½” x 50’ hose, non-ferrous internals, explosion-proof electric rewind motors and switches, auxiliary manual rewind. An isolation shut-off valve is installed immediately upstream of the reel.
HOSES: Underwing and Overwing Hose Reels w/Electric Rewind and 50′ API Fueling Hoses
OVERWING NOZZLE: Jet overwing nozzle with swivel and 100 mesh strainer.
UNDERWING NOZZLE: One international standard 3-lug underwing nozzle with quick disconnect and swivel.
BOTTOM LOADING: Includes a jet level sensor control system for automatic, high-level shut-off with precheck. The bottom loading adapter, capable of accepting a standard underwing nozzle. A gauge and shut-off valve shall be supplied immediately downstream of the bottom load adapter for re-circulation and testing.
DEFUEL: Optional fuel/defuel system operates in conjunction with bottom loading system to include overfill protection.
PIPING: Schedule 10 aluminum – 150 PSI rated working pressure.
TEST: Flow tested with jet fuel for performance.
FINISH: Cab painted factory white. Aluminum tank in natural polished finish. Equipment painted silver.
SAFETY FEATURES: Static reel with 50’ cable and bonding clamp, brake interlock system, emergency shut-down system, and two fire extinguishers. Backup camera system included and incorporated into the unit at the factory.
COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.
