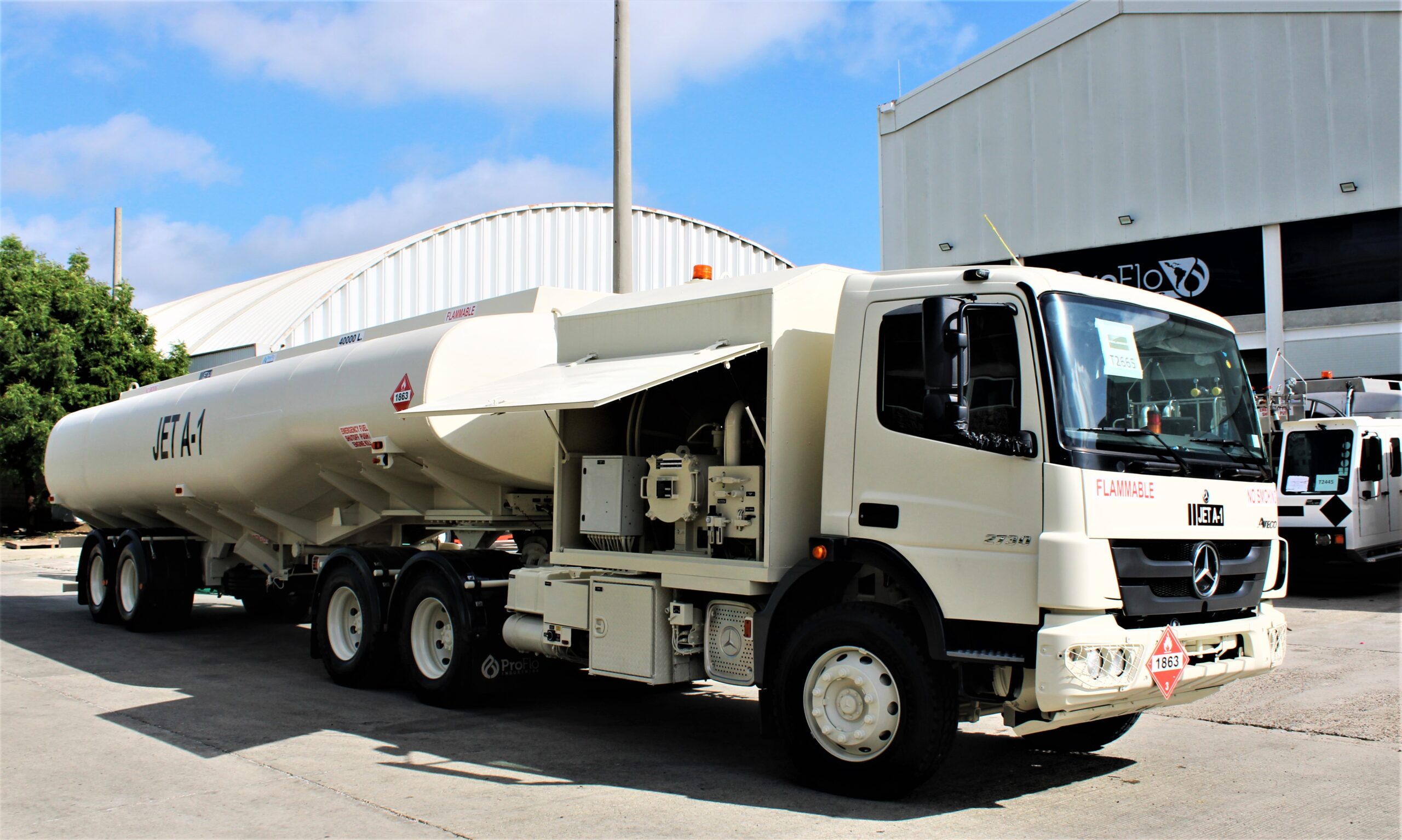

40,000 KL jet A1 refueler, with NFPA 407 and JIG-13 Compliance. Meets all requirements of DOT 406 specifications.

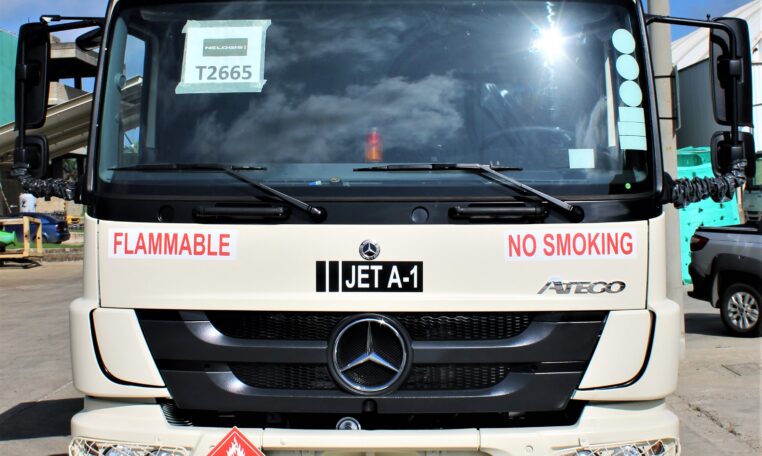

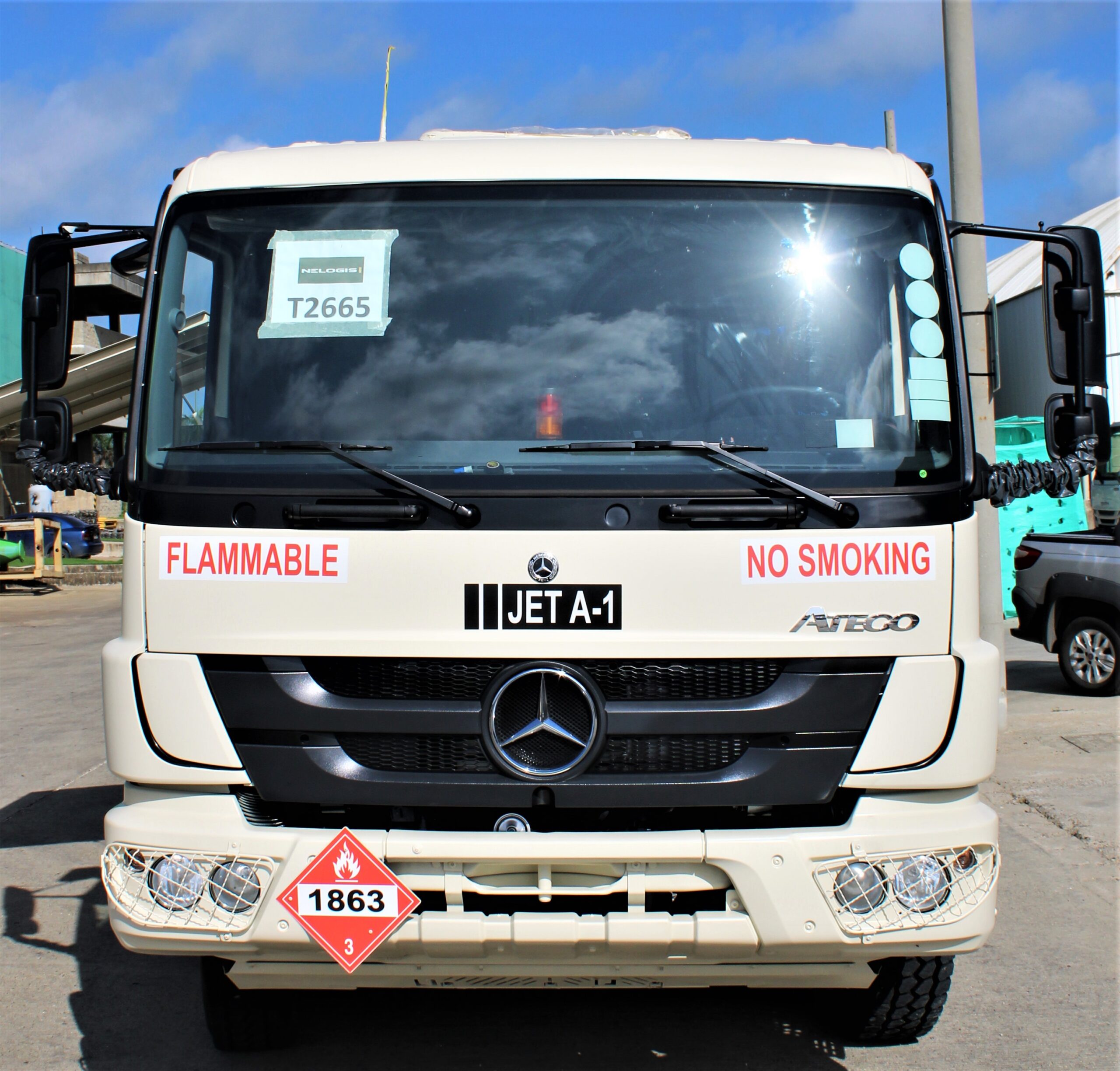

Chassis:

• New Mercedes Atego 2730
• Automated transmission
• EURO VI diesel engine
• Exhaust system compliant with NFPA 407
• 5th wheel coupling
• Heavy-duty rear bumper
• Engine fire suppression system
• Air conditioning
• Left-hand drive
• Factory-painted white cab

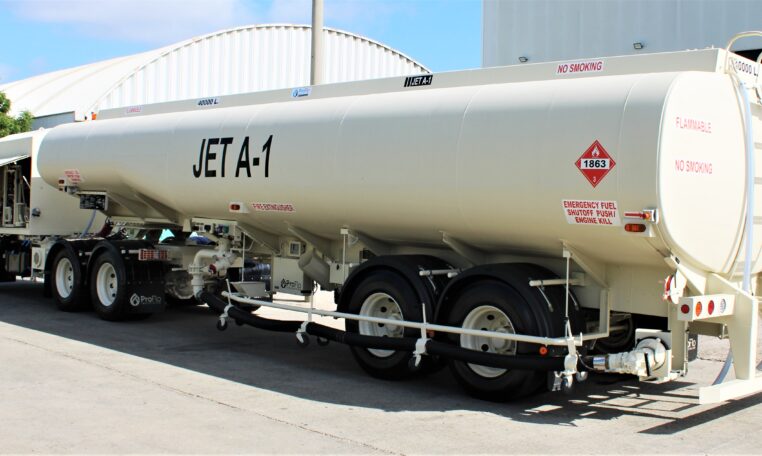

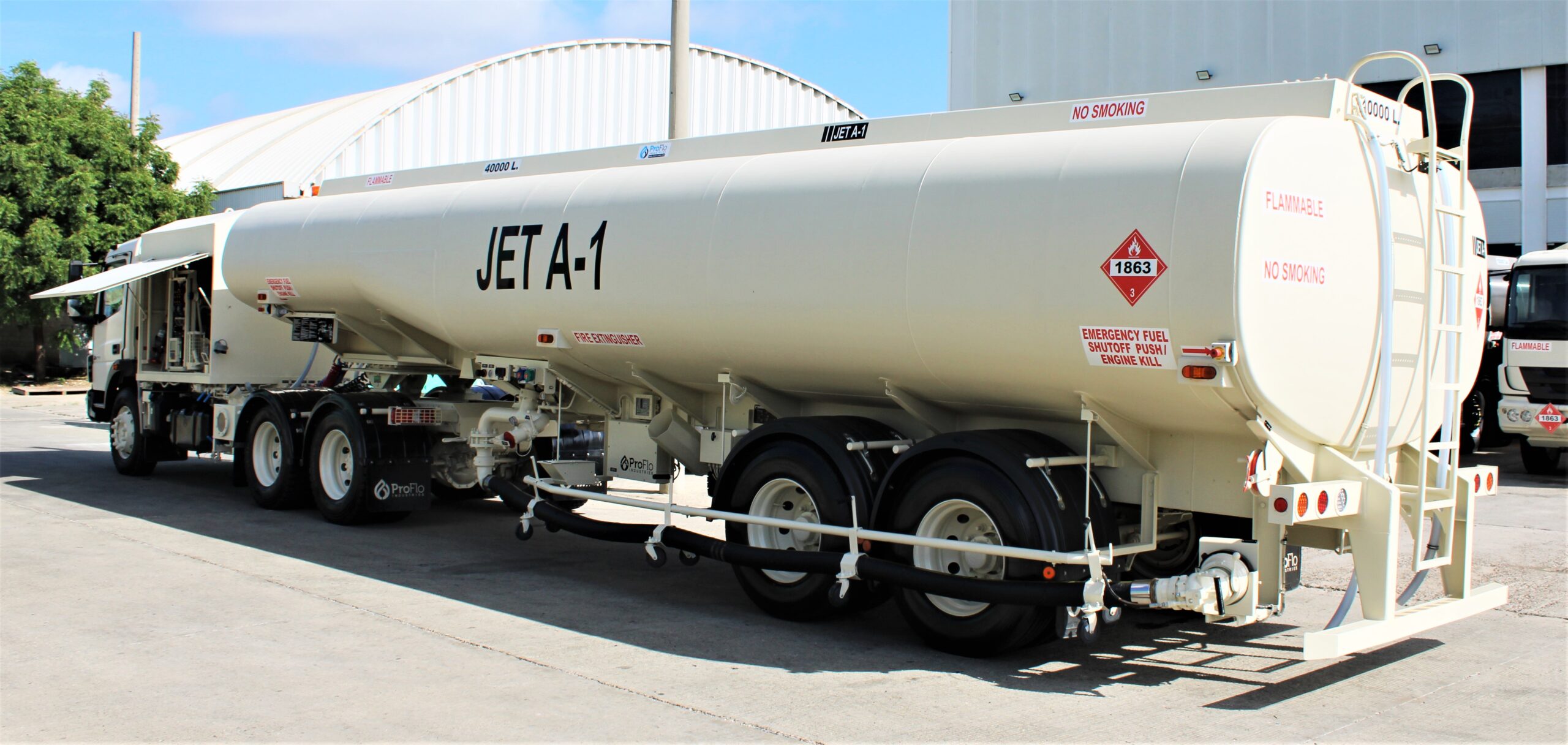

Tank:

• Tank 40,000 Liter semi-elliptical constructed in stainless steel
• (2) Inspect manholes
• Pneumatic vent
• 4” internal valve for loading with a pilot for the jet level sensor
• High-level w/ ultrasonic sensor and pneumatic shutoff valve
• 3” emergency valve for unloading with manual shutoff valve
• Water drains
• Bottom load system with pre-check test
• Overfill system for high and high-high level w/ shutoff load

Pump:

• Gorman Rupp 3″ PTO Driven Pump w/ shaft driven
• · 2” Mechanic bypass
• · 2.5” gauge 0 – 160 PSI

Filter:

• Separator vessel filter 6th edition set up to 300 GPM
• Air eliminator and Thermal pressure relief valve
• Last edition filter elements
• Water detected
• Butterfly valve inlet and outlet
• Water drains downstream and upstream

Meter:

• TCS meter setup aviation fuel, set-up to 300 GPM and a Remote Electronic register like a TCS 3000
• Hose reels and fueling hose
• Single Wrap Underwing hose reel w/ 2.5” x 50 Ft capacity, electric rewind, and manual crank
• 2” x 50 Ft MxM fueling hoses
• Underwing CLA-VAL CARTER nozzle 347GF or 64250 series with/ 100 mesh strainer and dust cap
• Single Wrap Overwing hose reel w/ 1.5” x 50 Ft capacity, electric rewind, and manual crank
• 1-1/4” x 50 Ft MxM fueling hoses.
• Overwing OPW nozzle 295SJ series with/ 100 mesh strainer, grounding cable, and dust cap

Controls:

• 3” Inline valve w/ pneumatic pilot
• 24-volt system
• HECV 45 PSI
• Fuel / Defuel system with/ switch included in the control panel

COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.

The above-listed items are for a standard Garsite jet refueler. Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
