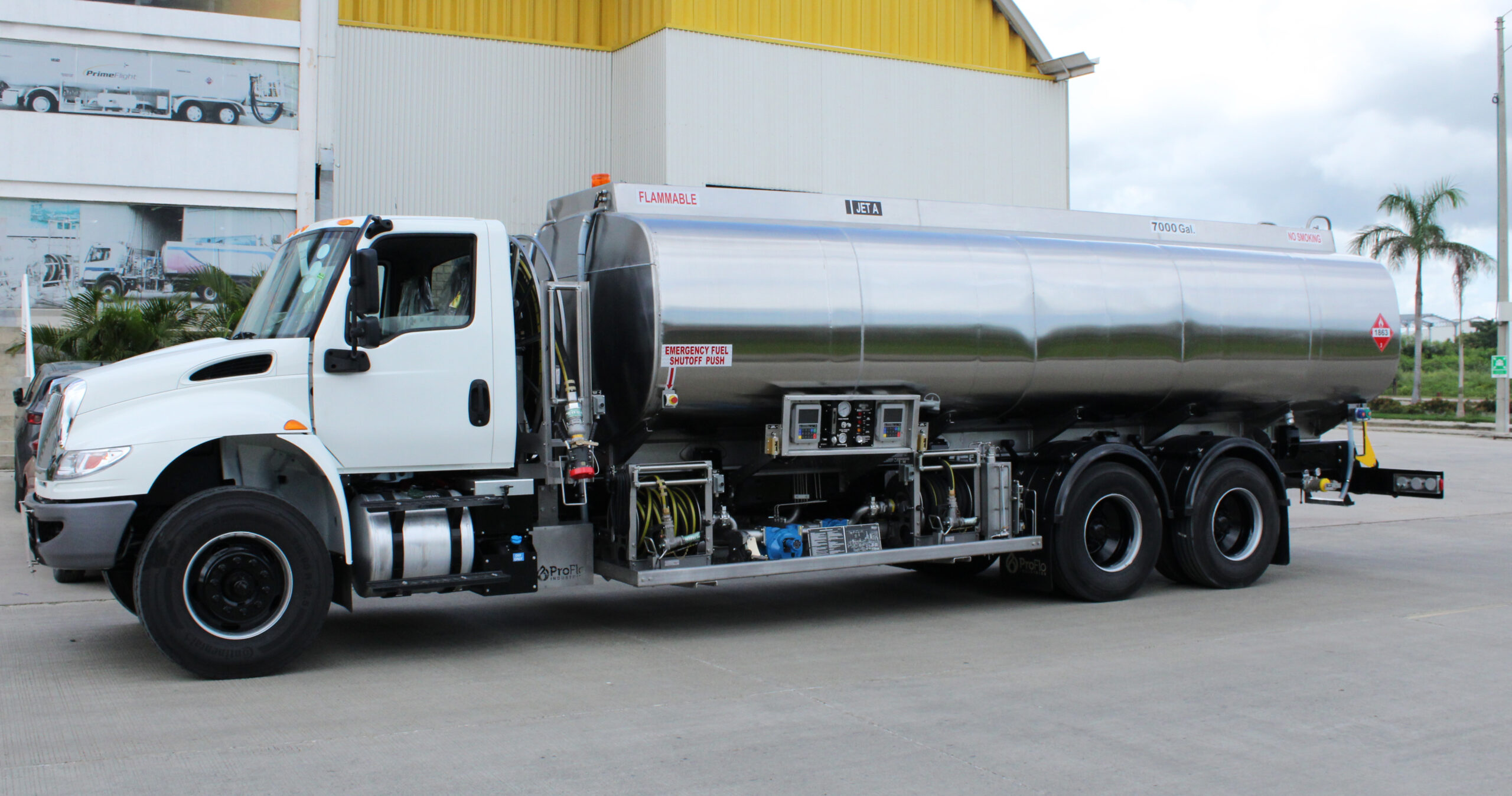

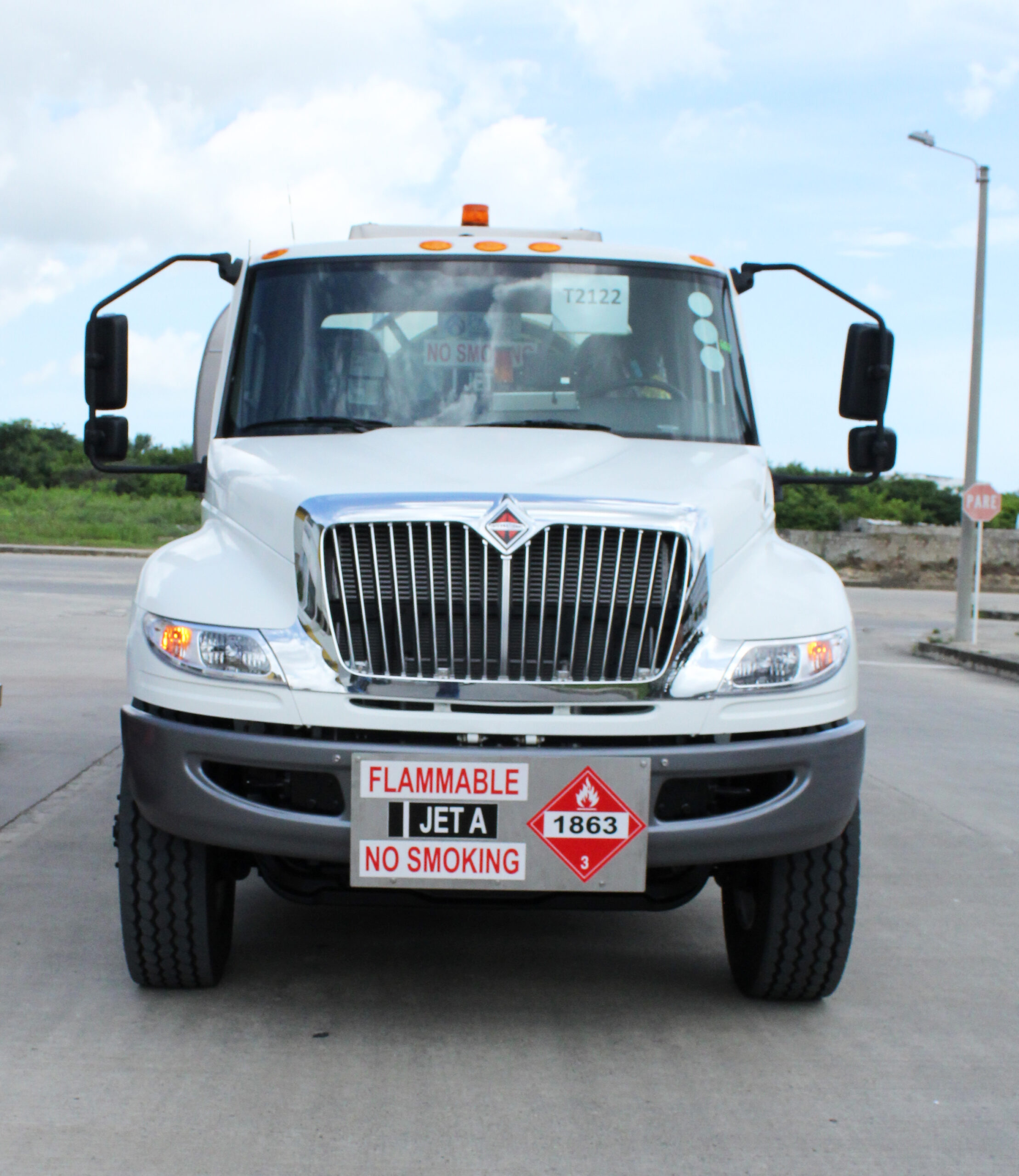

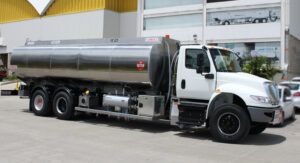

Garsite has new 7,000-gallon (26,500 liters) Jet refuelers in stock and available for immediate delivery.

FEATURES INCLUDE: 2025 Navistar HV607 Chassis, Cummins Diesel Engine, Allison Automatic Transmission, Fire Suppression System and Bi-Line for Fall Protection.

PUMP: Gorman Rupp Product Pump, Hot-Shift PTO Driven, and 300-600 GPM / 1,135-2,270 LPM.

FILTER/SEPARATOR: 5th Edition Horizontal Filter/Separator – 300 GPM rated with differential pressure gauge, air eliminator, water defense and drain valve. F/S meets API 1581 specifications and qualification procedures for solids and water removal. Filter Monitor is available as an option.

DEADMAN AND PRESSURE CONTROLS: Electrically operated inline deadman/pressure control and shut-off valve provides primary pressure control. Secondary pressure control is regulated by a mechanical hose-end control valve.

METER: TCS meters with electronic registration and cellular modem.

HOSE REELS: Two reels; one single wrap sized for 2½” x 50’ hose, and one sized for 1½” x 50’ hose, non-ferrous internals, explosion-proof electric rewind motors and switches, auxiliary manual rewind. An isolation shut-off valve is installed immediately upstream of the reel.

HOSES: One 2” x 50’ and one 1¼” x 50’ aviation fueling hose with N/R male couplings, certified to API 1529.

OVERWING: Two multi-wrap overwing reels.

UNDERWING: One single-wrap underwing reel.

BOTTOM LOADING: Includes a jet fuel level sensor control system for automatic, high-level shut-off with precheck. The bottom loading adapter, capable of accepting a standard underwing nozzle, is installed on the driver side. A gauge and shut-off valve shall be supplied immediately downstream of bottom load adapter for re-circulation and testing.

DEFUEL: Fuel/defuel system operates in conjunction with bottom loading system to include overfill protection.

TEST: Flow tested with jet fuel for performance to rated specifications.

SAFETY AND ADDITIONAL FEATURES: Static reel with 50’ cable and bonding clamp, brake interlock system, emergency shut down system, pressure control, EFSO System, differential pressure gauge, nozzle pressure gauge and pump pressure gauge, static ground reel, chock block and ladder holder.

COMPLIANCE: Meets all applicable NFPA 407 & 385 codes. The design complies with ATA-103 requirements.

The above-listed items are for a standard Garsite 7,000 gallon jet refueler. Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
