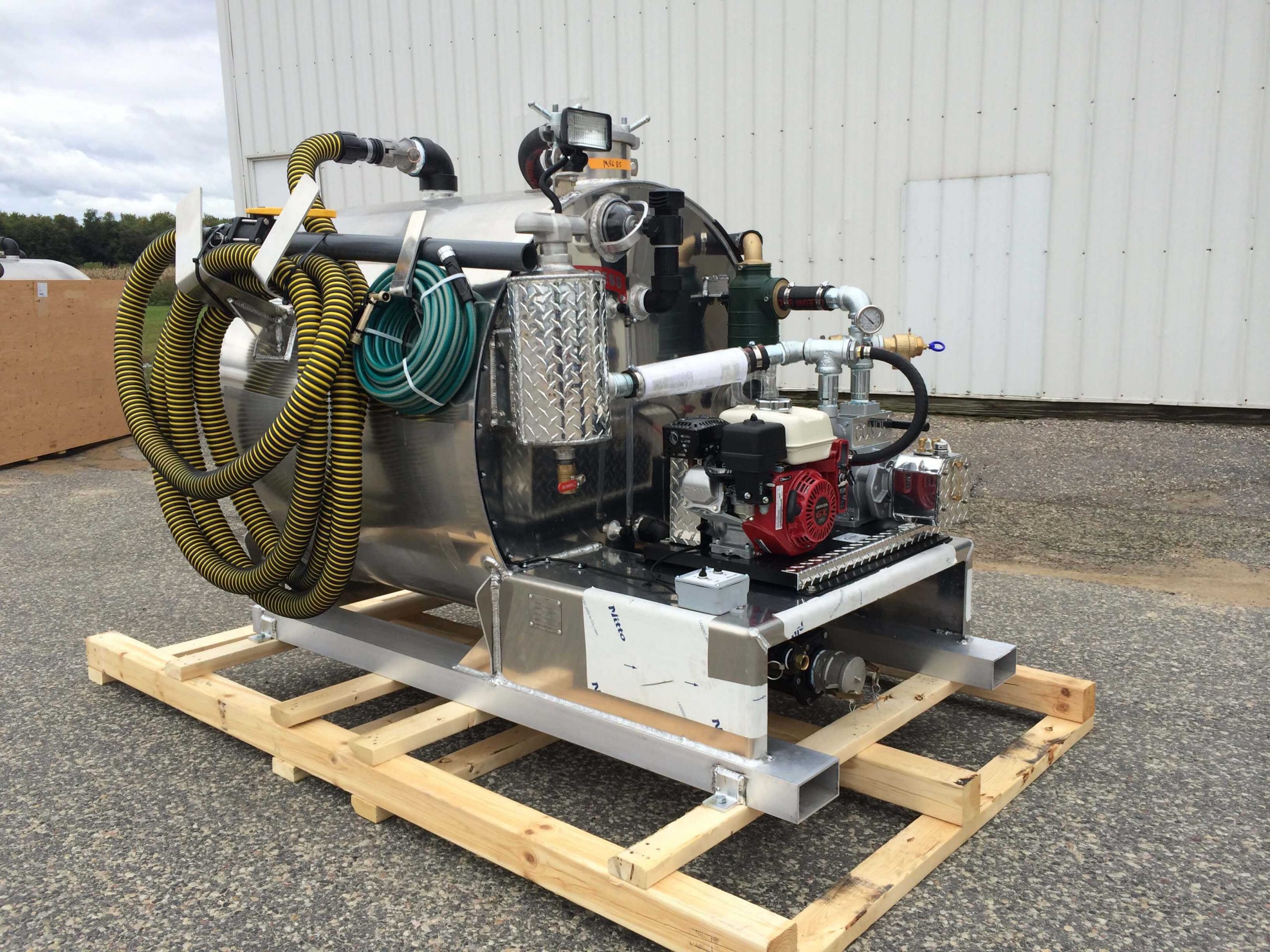

800 Gallon Slide-In Unit

Capacity: 800 Gallon

Standard Unit: 540 Waste / 260 Fresh

Basic Specifications:

• Two (2) 5″ Sight Level Glasses for Waste Compartment
• Sight Level Tube for Water Compartment
• 8″ Primary on Top of Tank
• Honda 270cc Gasoline Engine w/ Electric Start
• Masport HXL3V (106 CFM @ 27″ Hg.) Direct Drive Vacuum Pump
• 4-Way Valve for Vacuum and Pressure Offloading Tank
• Toico 12-Volt (5.5 PSI @ 60 PSI) Wash-Down Pump System
• One (1) 30′ x 2″ Section of Tiger Tail Flexible Vacuum Hose
• Vacuum Stinger Pipe w/ Hand Control Open and Close Ball Valve
• Work Light Mounted on Top of Tank
• 3″ Discharge w/ Valve and Dust Cap
• Battery Box

Dimensions: 59″ Wide x 66″ Tall x 113″ Length

Empty Weight is Approximately 1120 lbs

Available Options:

• Larger Vacuum Pump Packages
• Gasoline, Diesel, and Electric Engines
• Single Compartment Tanks for Vacuum Only Service
• Top and or Bottom Rear Clean-Out Manways
• Additional Sections of Vacuum Hose
• Available in 300 – 995-Gallon Tank Sizes
