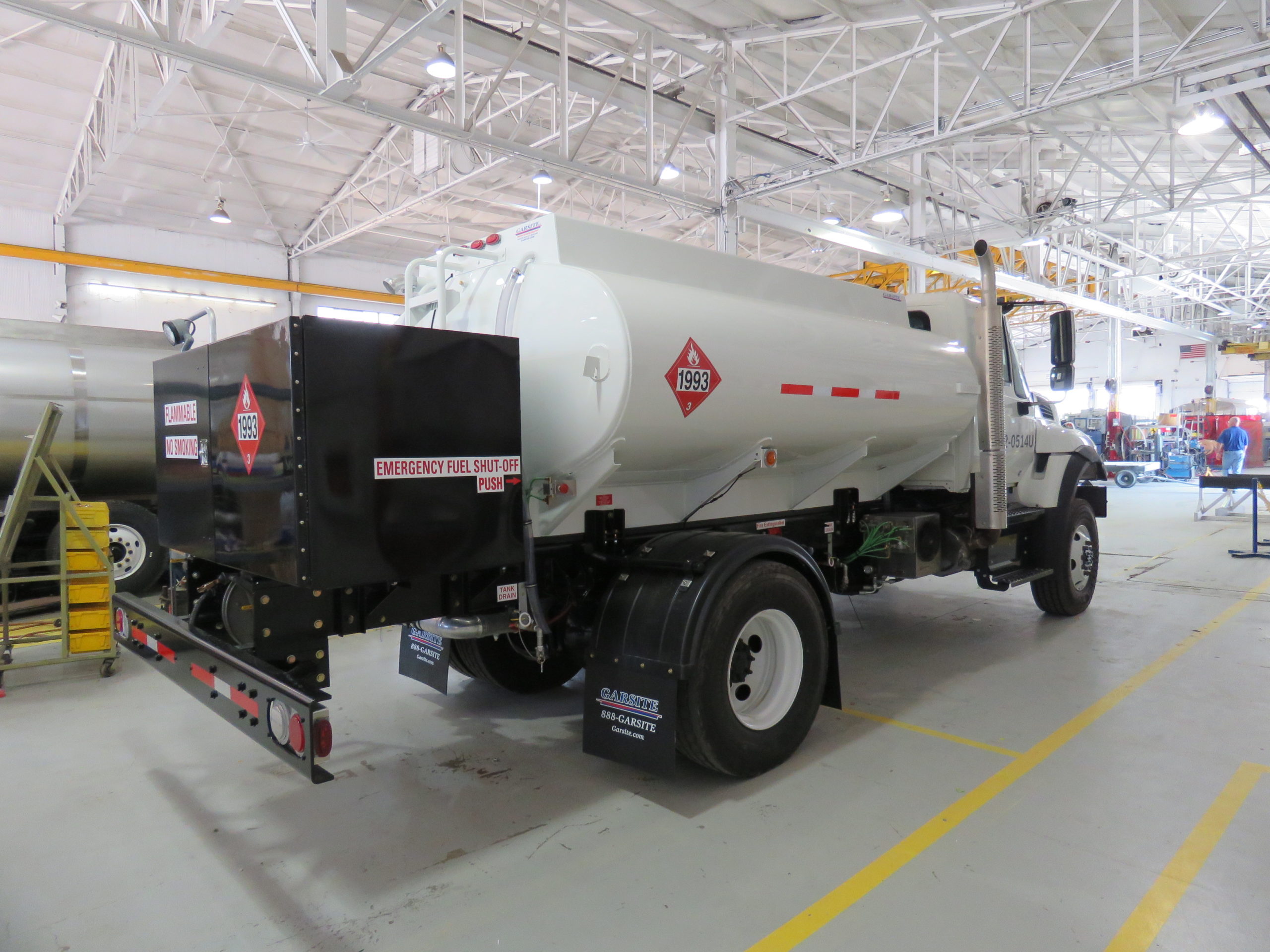

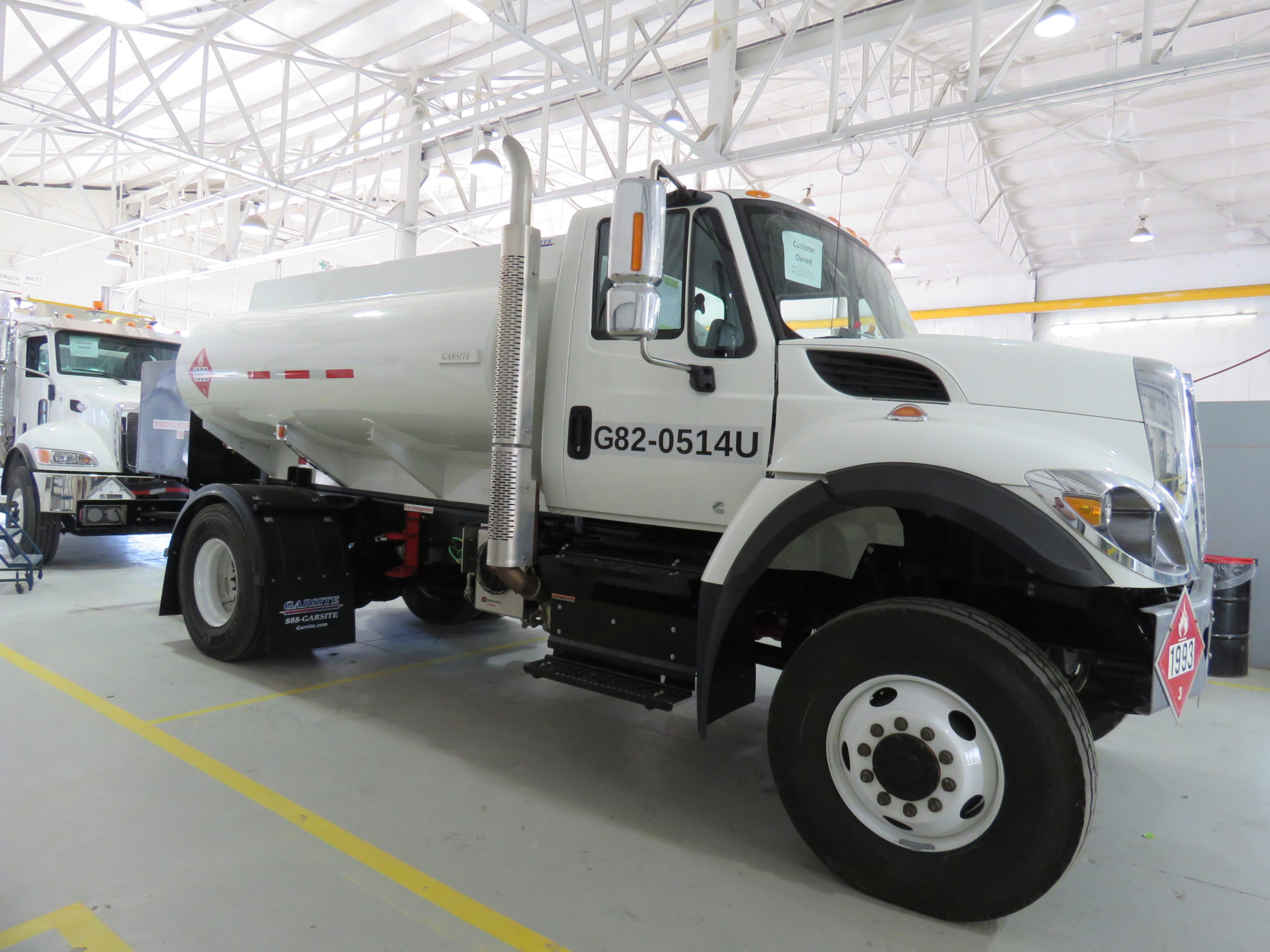

Ground Support Truck tank capacity is adaptable to needs. Option for single or split with compartments (split only available for 2000 gallons and above) for diesel and gasoline. Tank is fully baffled and includes overturn protection, future vapor recovery ready, manhole with venting, and full-length under-frame. Available in aluminum or stainless steel. Meets all requirements of DOT 406 specifications.

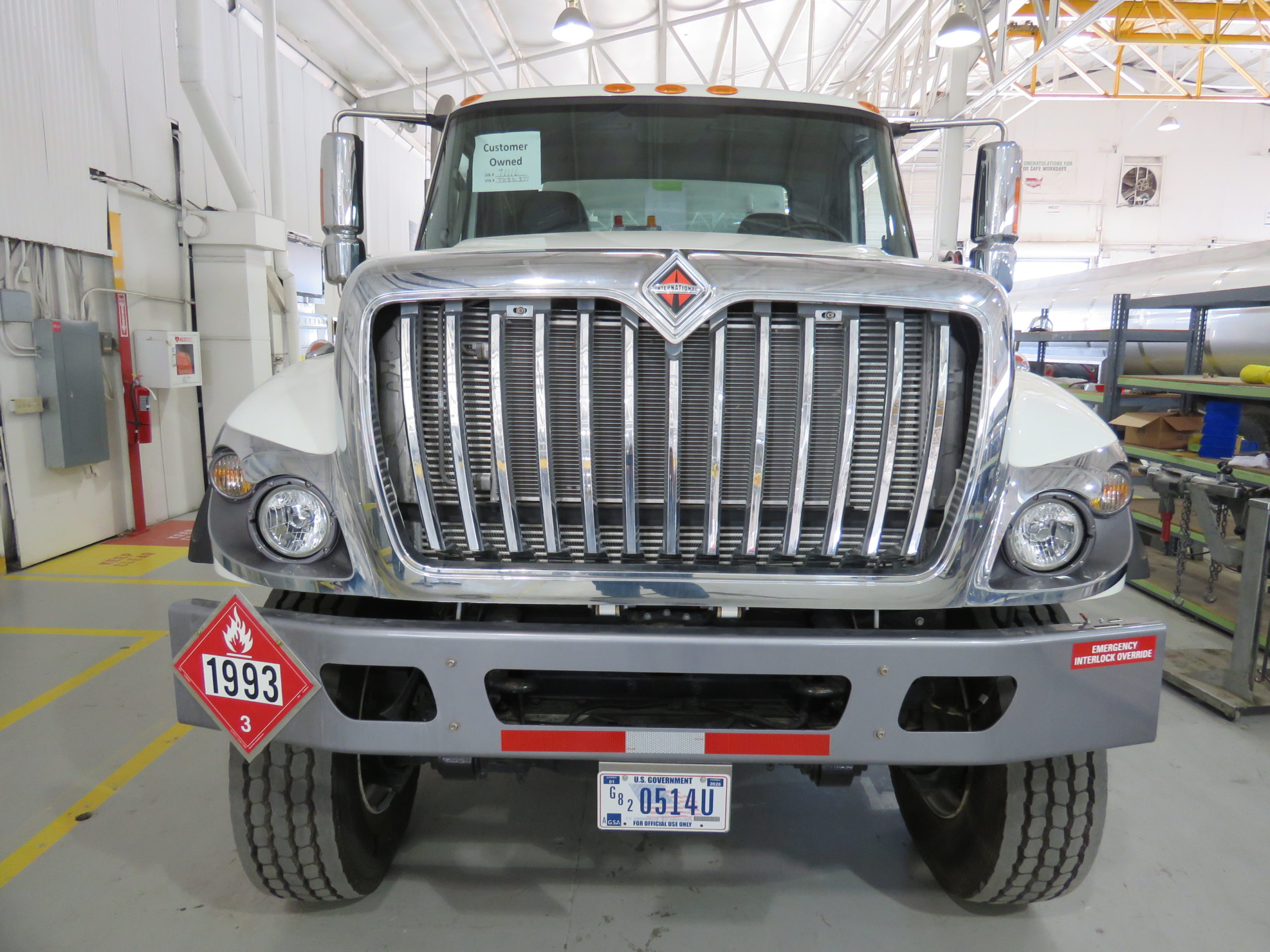

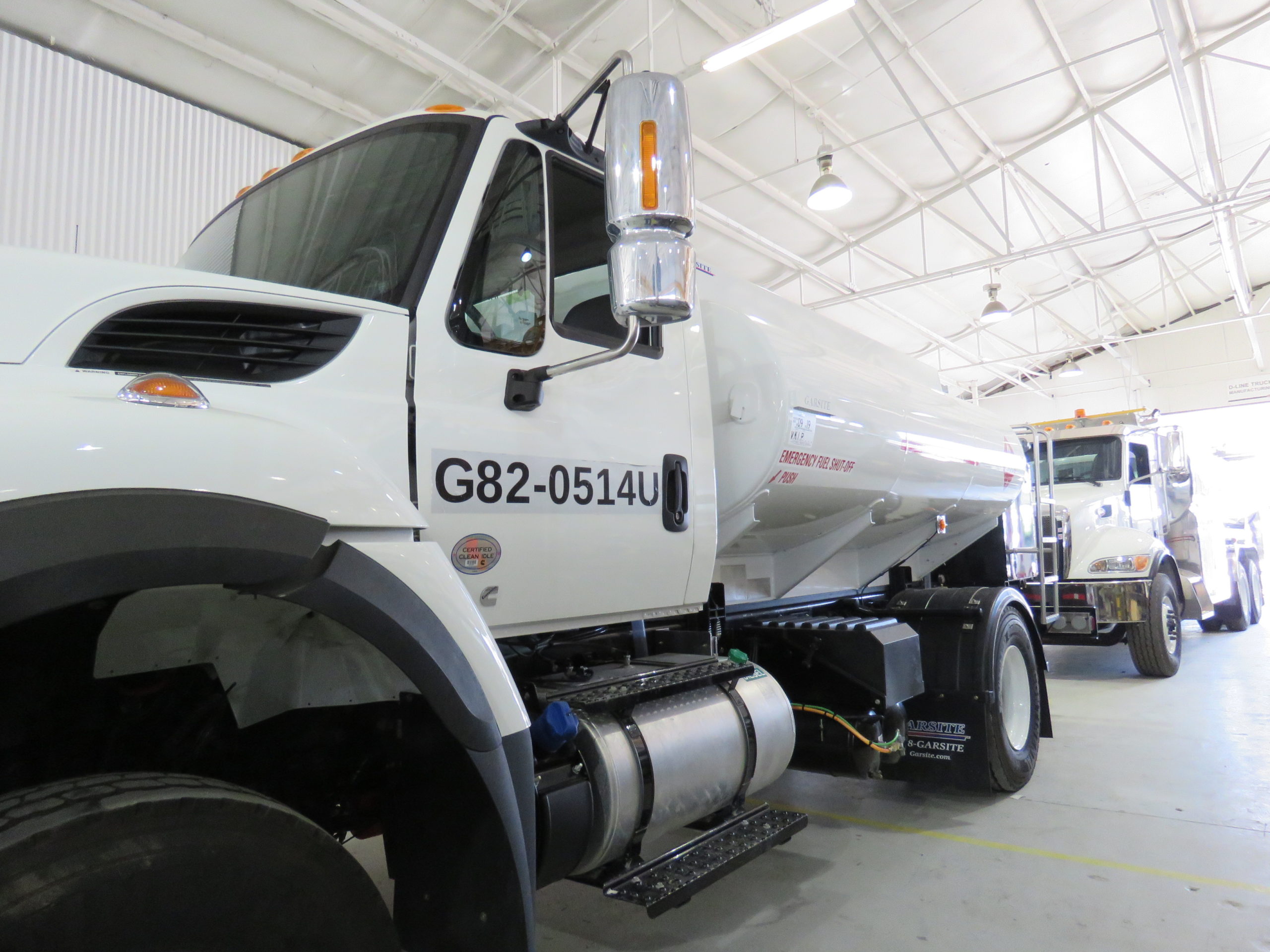

Chassis – Various cab types and drivetrain options are available. (Detailed specifications available upon request.)
Standard Dimensions – 26’L x 96” W x 116”H
PUMP: PTO-driven positive displacement or centrifugal options along with electric options available.
FILTER SYSTEM: Facet filter housing with differential pressure gauge, air eliminator, water defense, and drain valve. Options include top-mounted DP Gauges for diesel & mogas, filter monitor, and millipore sample port.
FLOW METER: One meter, with large numeral, reset counter and totalizer, register head.

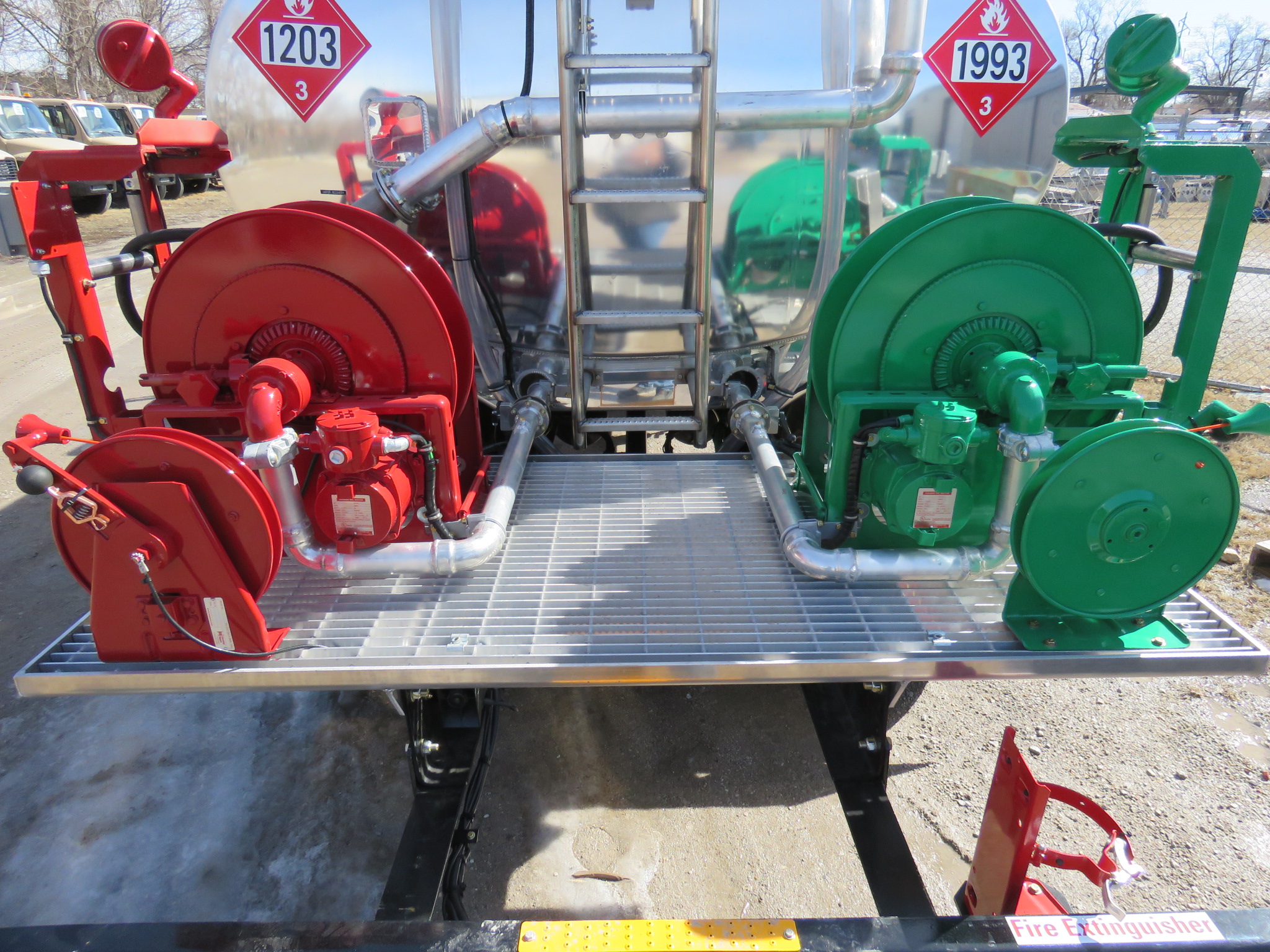

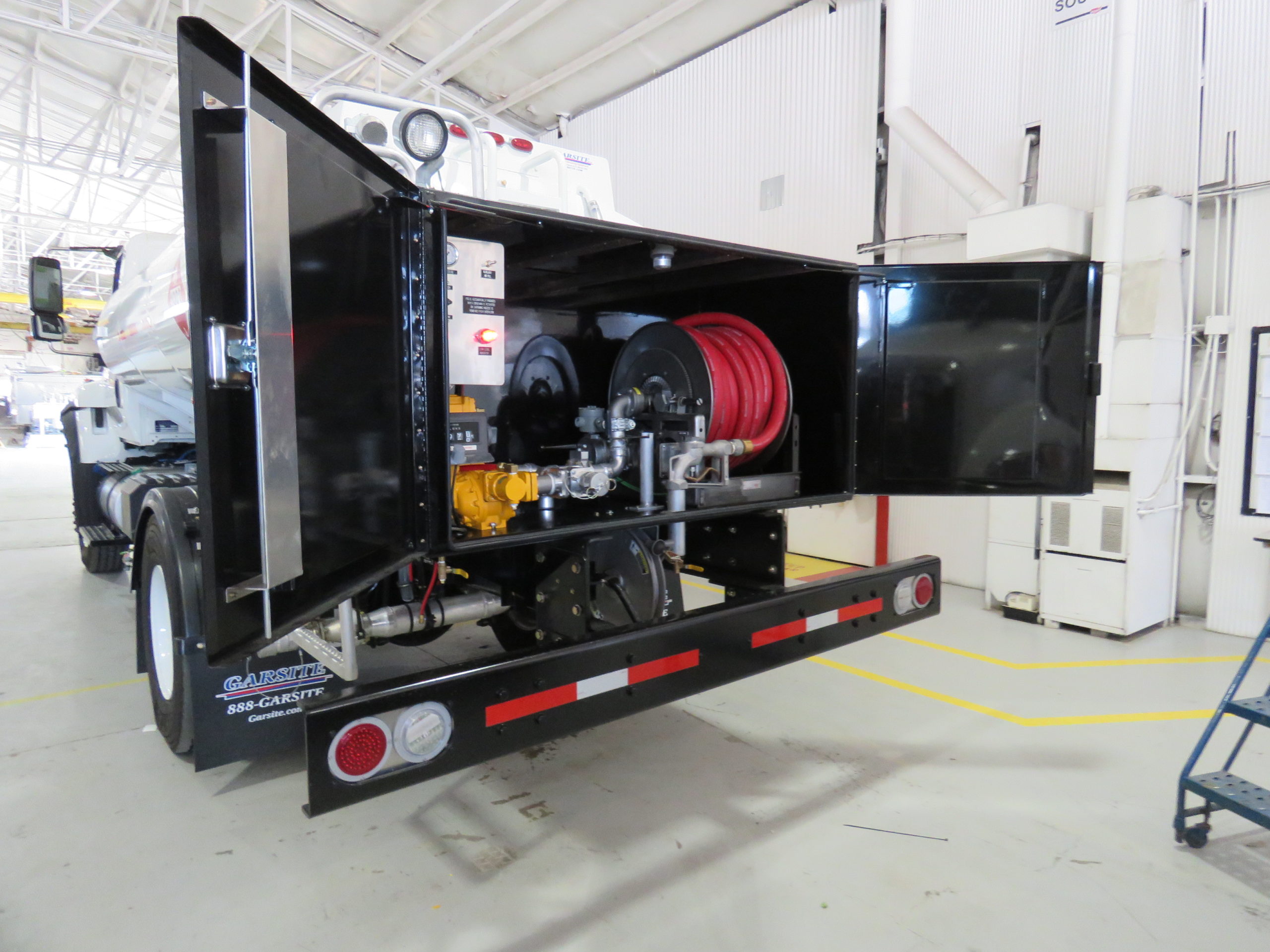

HOSE REELS: Single compartment with one hose reel. Split compartment with two reels, one on each side; sized for hose compatibility, non-ferrous internals, explosion-proof electric rewind motors and switches, auxiliary manual rewind. An isolation shut-off valve is installed immediately upstream of the reel. Dispensing equipment is mounted on a platform at the rear of the unit.
HOSES: Variety of hose sizes available. Size adjusted to accommodate GPM. Hose lengths from 25 – 100 ft.
BOTTOM LOADING: Tank is bottom loading ready which includes: bottom loading valve; kamvalock type connection; pressure gauge; manual shut off valve.
DEFUEL OPTION: Optional defuel stub/Self Load Included – 3” Dry break adaptor for DIESEL, 2” dry-break for MOGAS (BL-34).
TEST: Flow tested with fuel for performance.
FINISH: Tank remains in a natural finish, cab and equipment painted one color with polyurethane paint. Custom paint is available at an additional cost.
SAFETY FEATURES:: All required safety features including static reel with cable and bonding clamp, brake interlock system, emergency shut down the system. fire extinguishers. light at pumping platform and register head, floodlight at cabinet area. A backup camera system is included as standard and incorporated into the unit at the factory.
MISCELLANEOUS: Additional features include: weatherproof electrical junction box, rear fenders, tank access ladder, shielded exhaust, tank capacity chart with gauge stick, product placards, and product reflective decals.
COMPLIANCE: Meets all applicable NFPA 385 codes.
CONTRACTS: Garsite is a GSA and DLA contract holder.
The above-listed items are for a standard Garsite Ground Support Truck. Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
