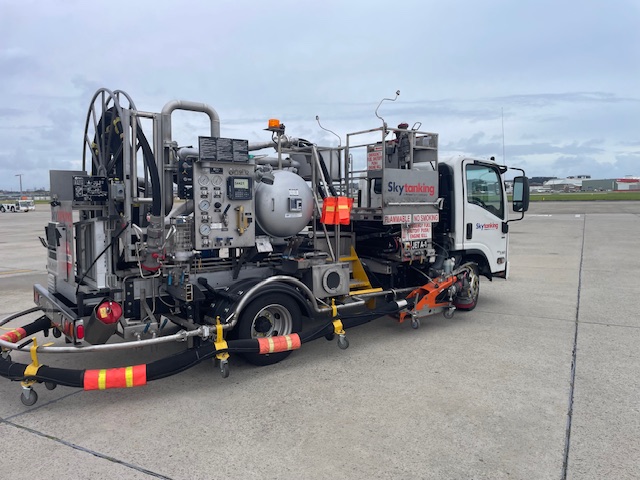

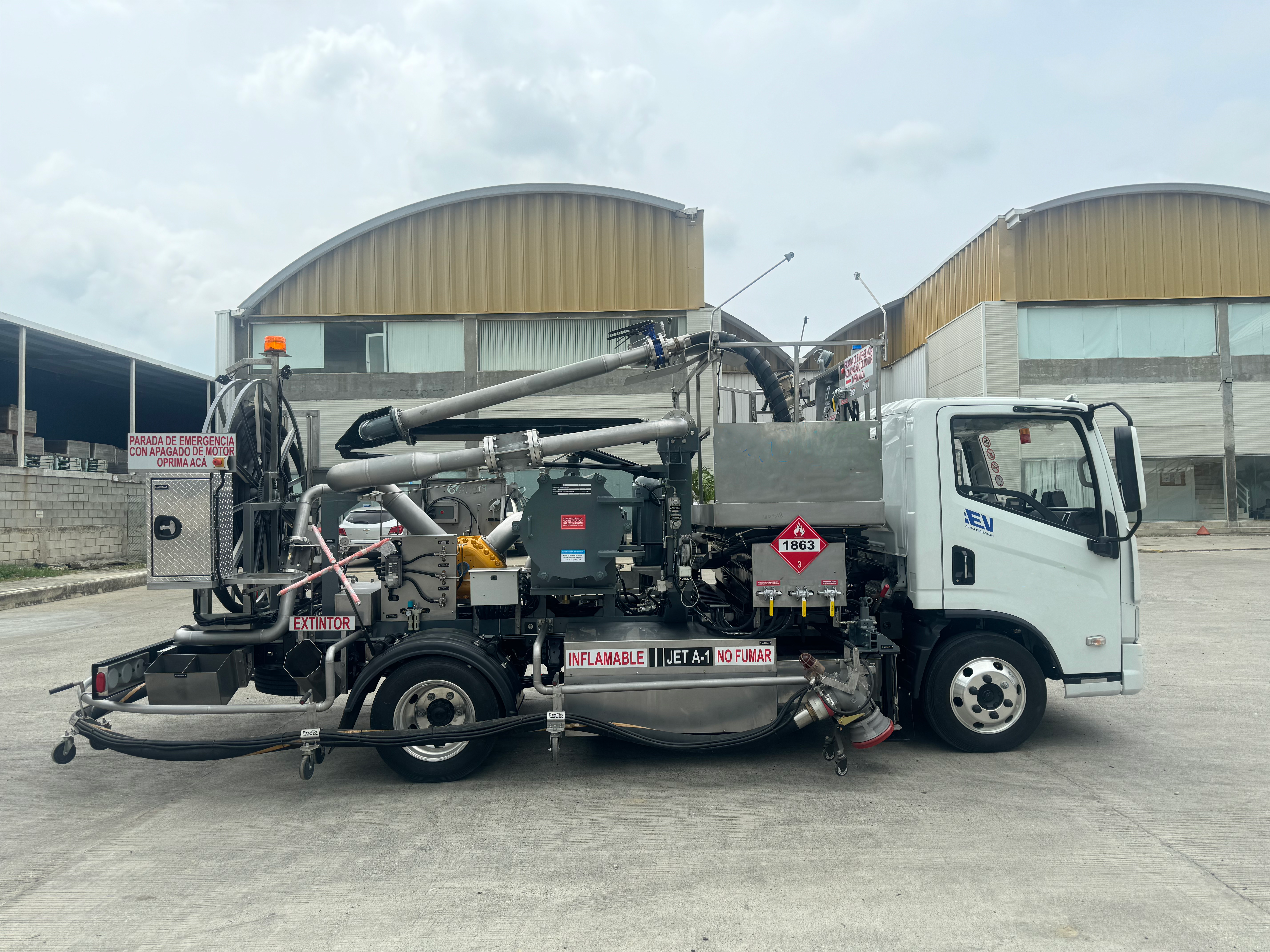

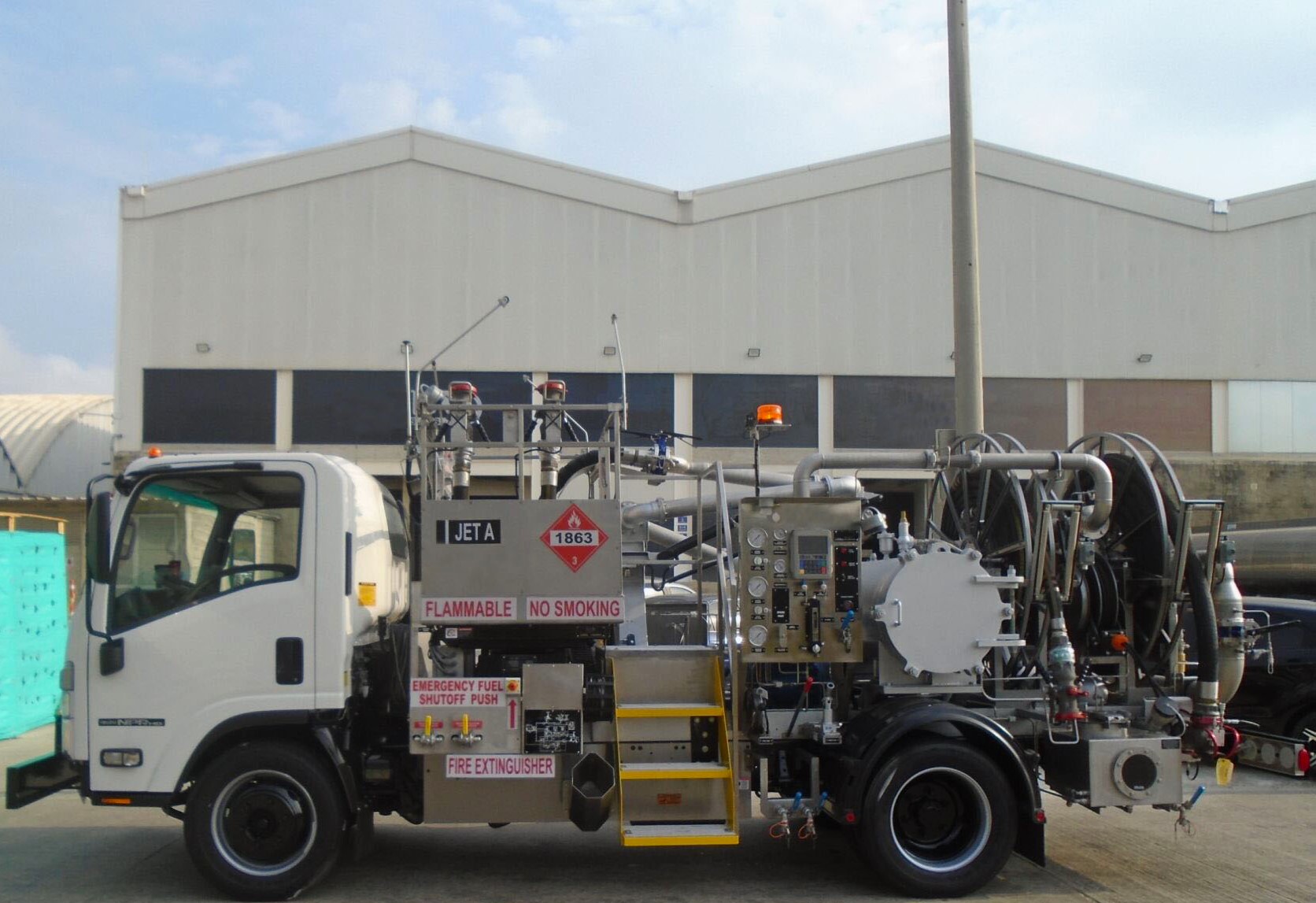

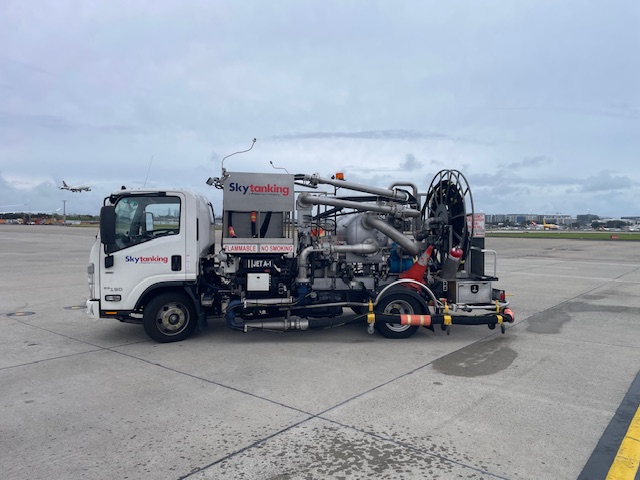

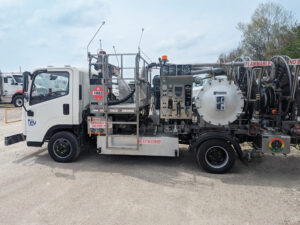

Hydrant Dispenser

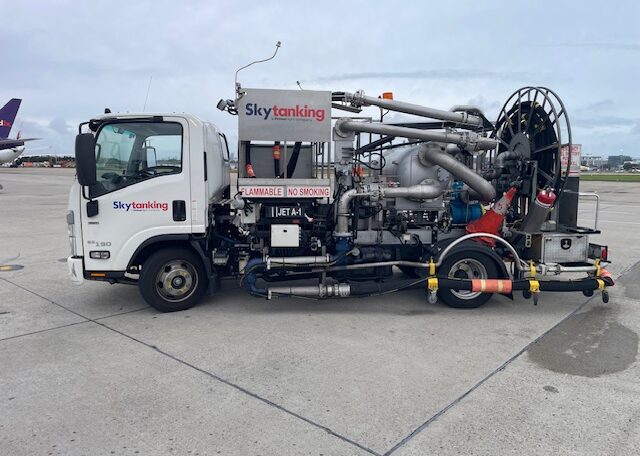

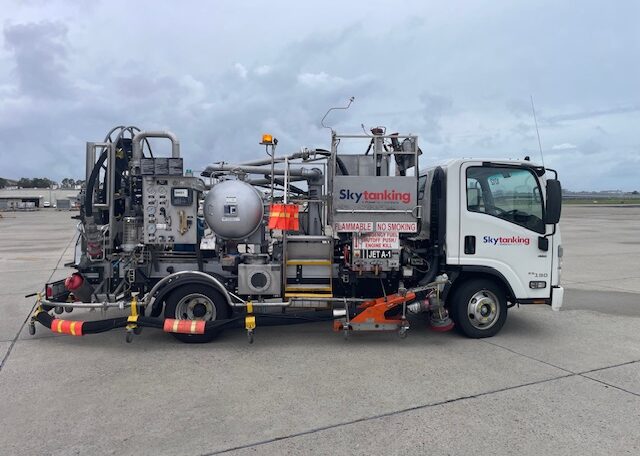

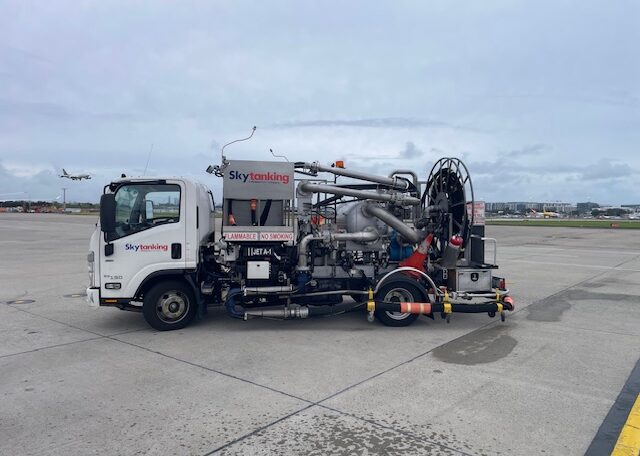

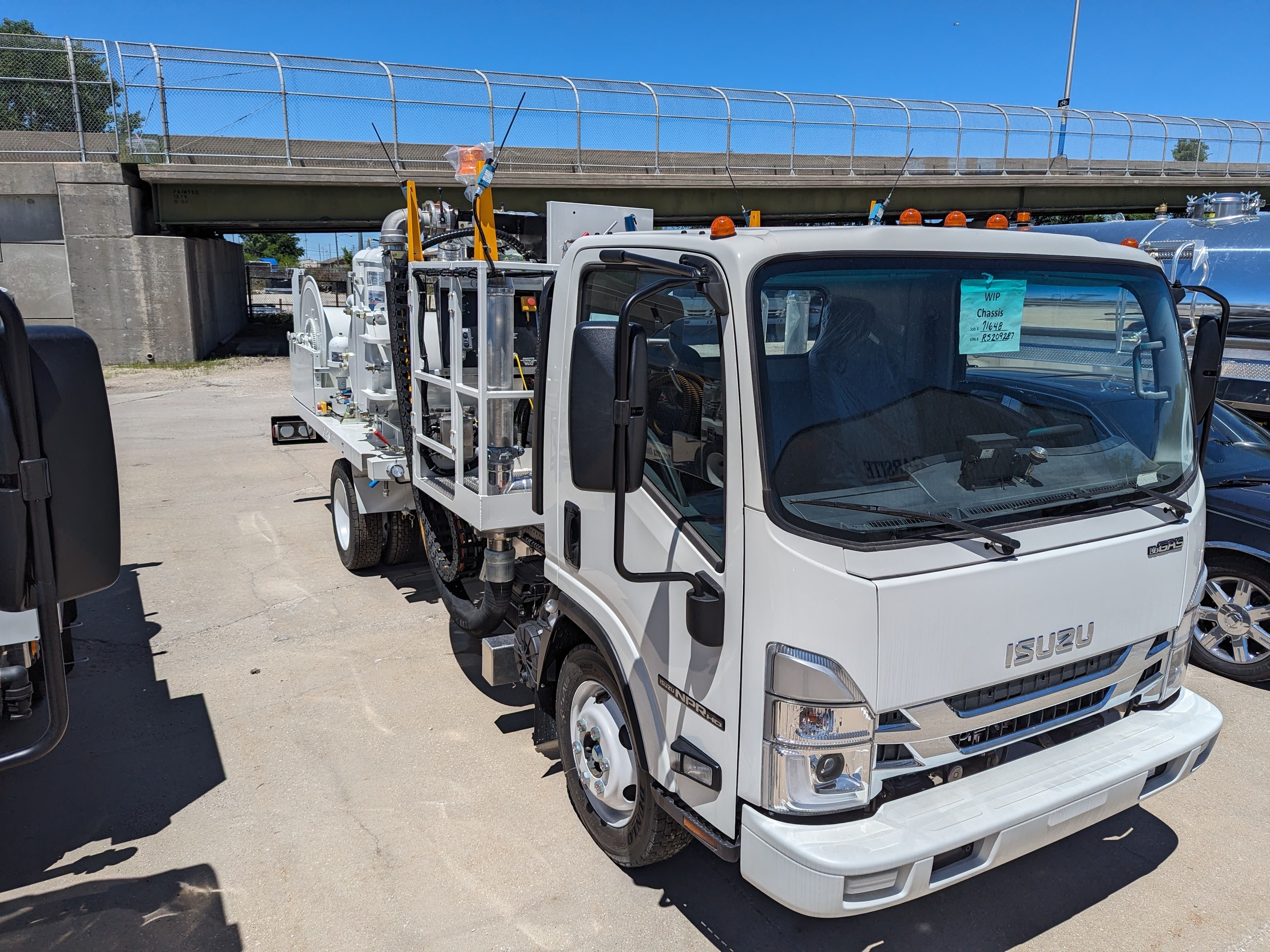

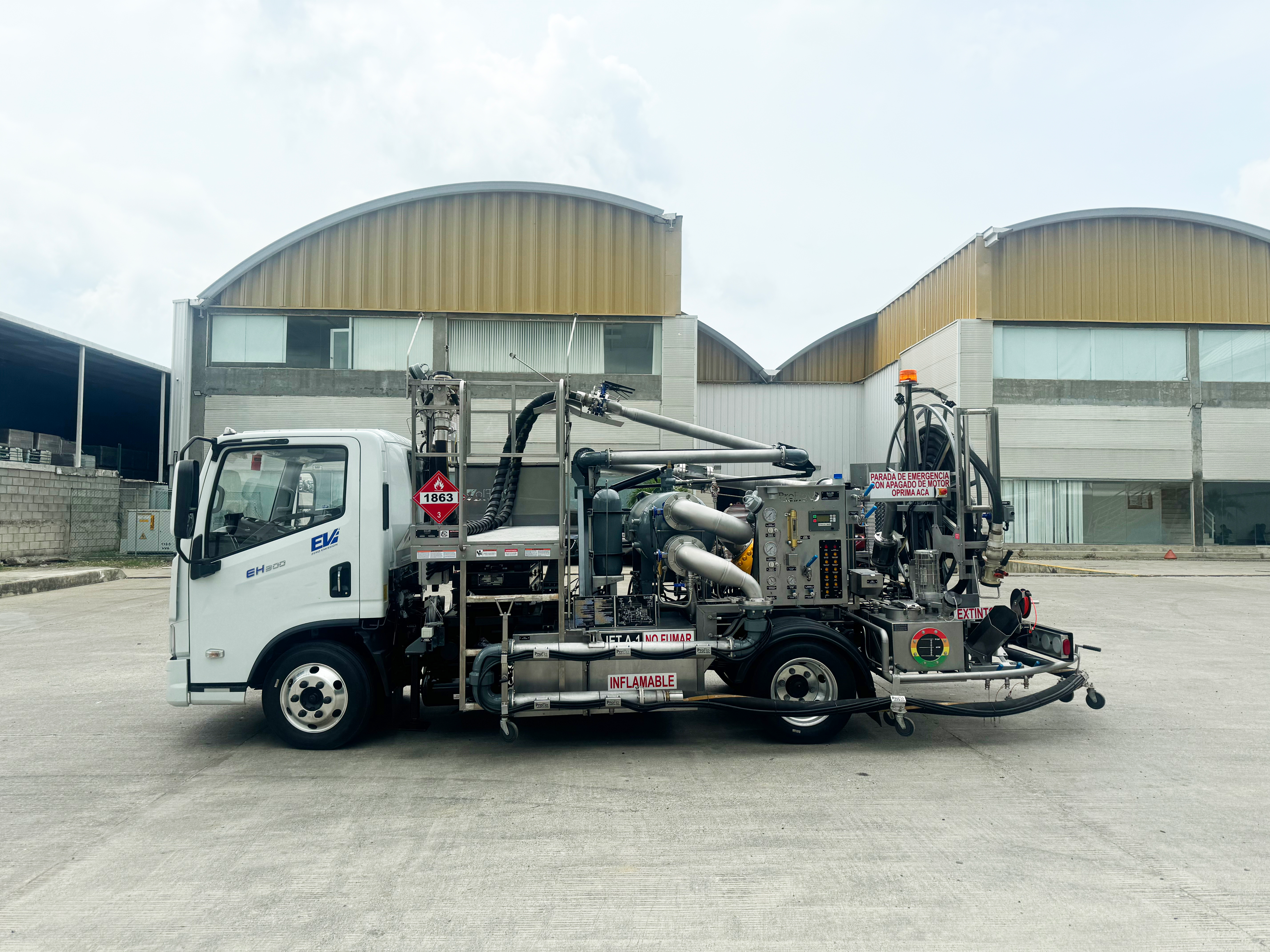

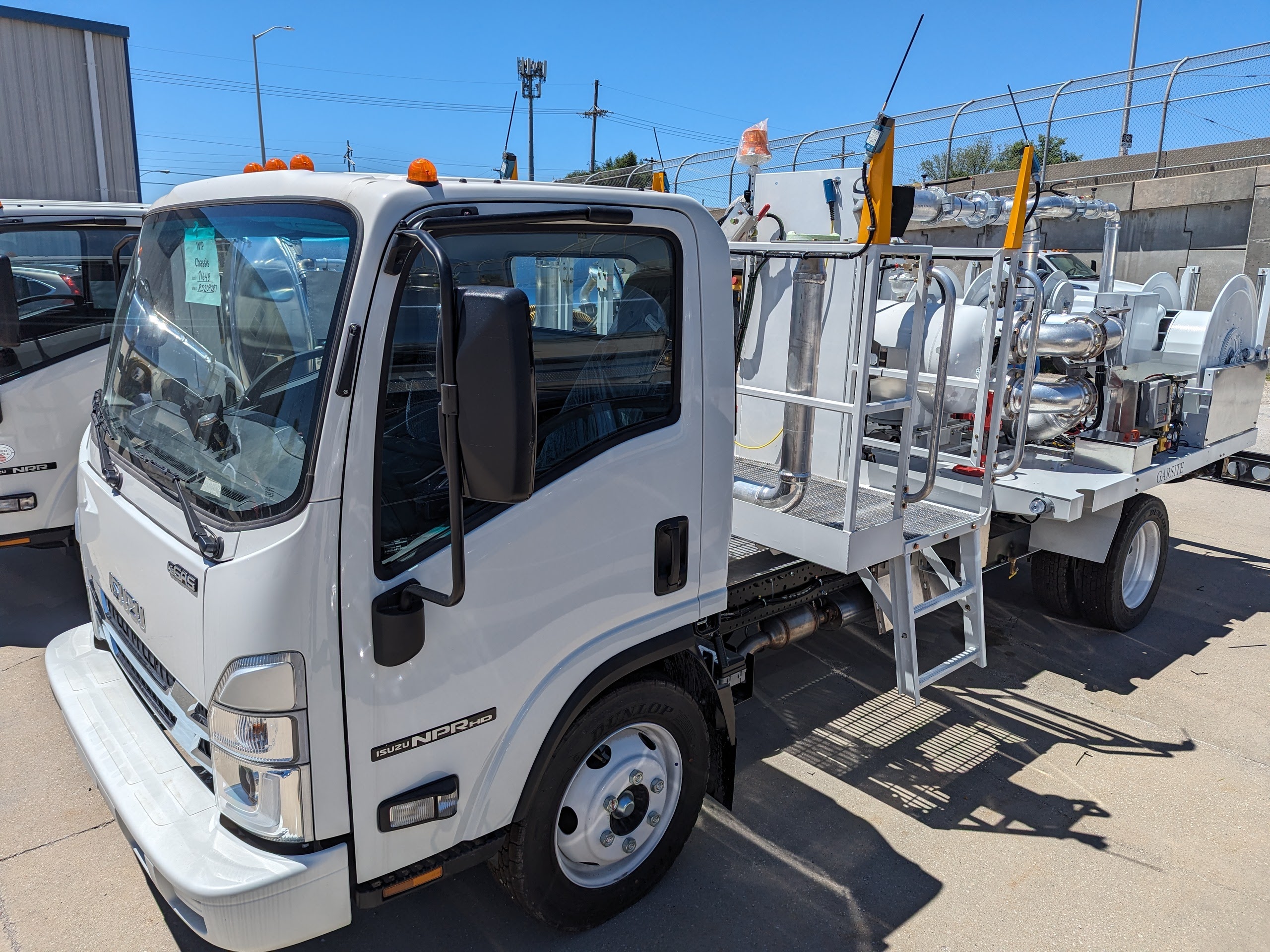

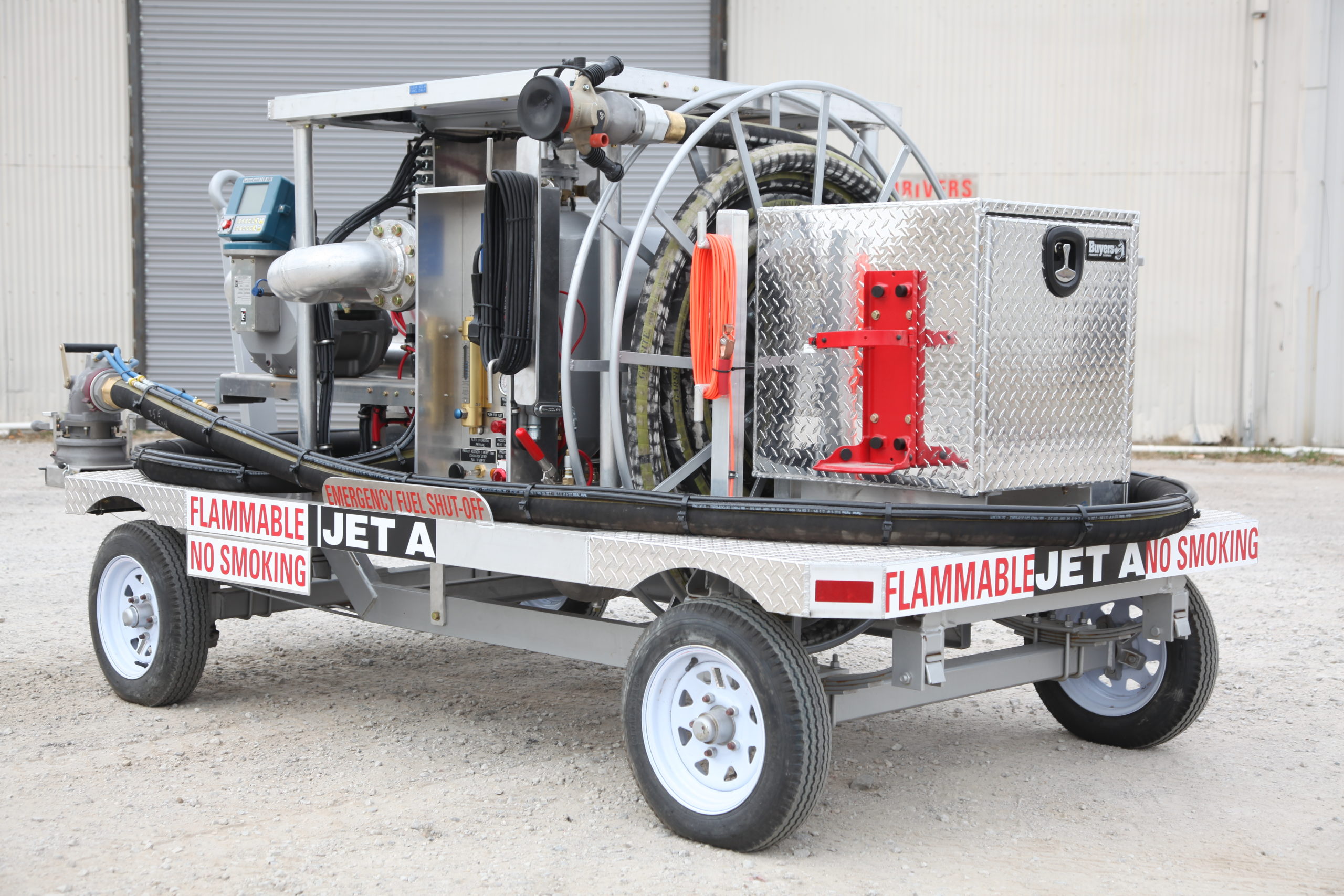

CHASSIS: New Isuzu NPR 4 x 2 chassis, 12 or 24 Volt, RHD, duty four-wheel trailer. Fully rated suspension (for towing up to 35 MPH) and Ackerman-style steering axle.

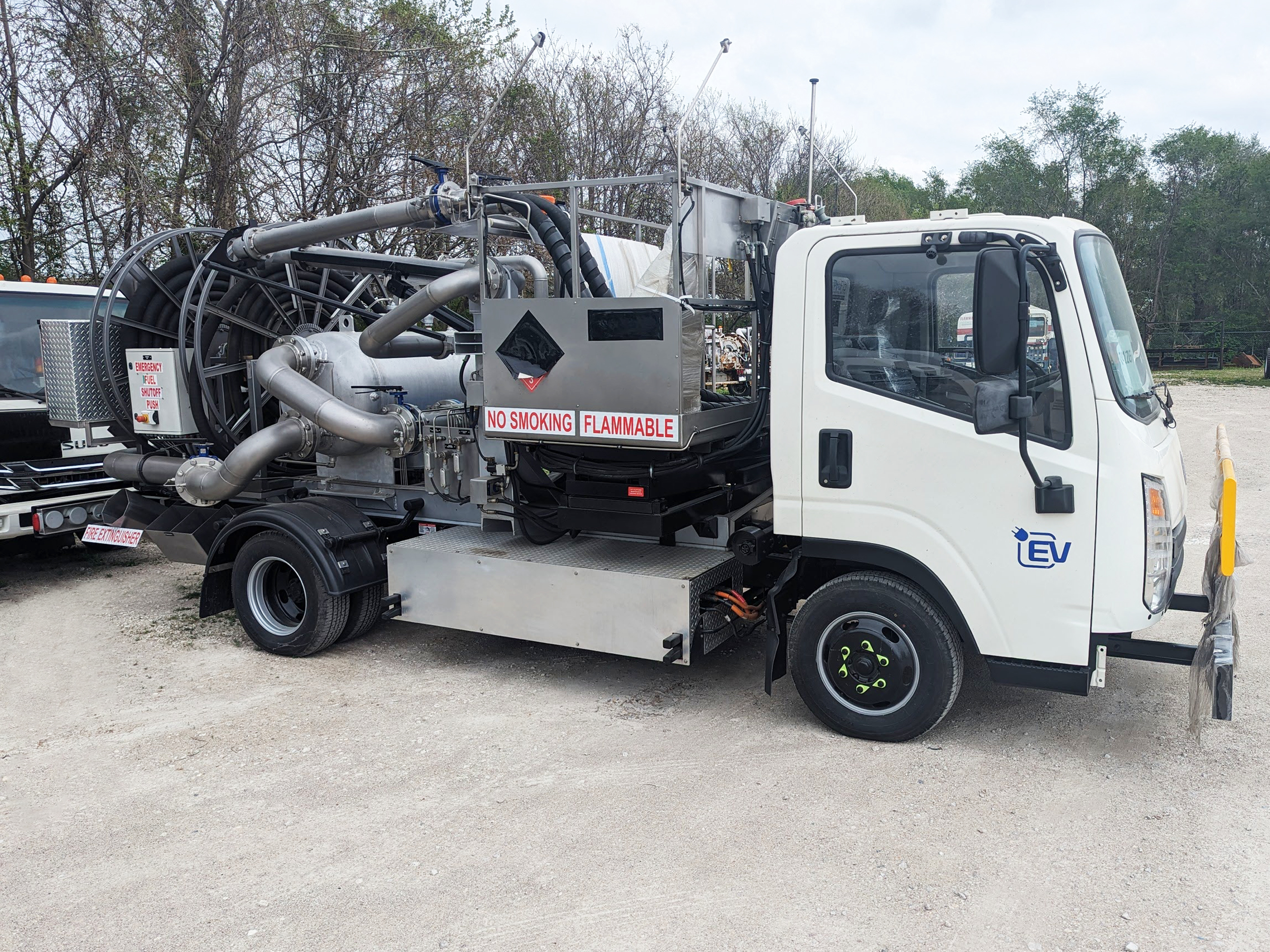

FEATURES: Fully self-contained and maintenance-free pressure control system (no external air source, electrical source, or nitrogen source required). All aluminum deck and hose reel (for low maintenance). Fully integrated solar-powered system; includes battery for the interlock system. Multiple variations of the vehicles are available, electric or gasoline powered.

STANDARD DIMENSIONS: 128”L x 65”W x 64”H

HYDRANT COUPLER: Pressure controlling coupler to mate with 4” API hydrant valve.
FILTER / MONITOR: Filter/monitor, 800 GPM rated and equipped with a direct reading differential pressure gauge, purge valve, pressure relief valve, air eliminator and drain valves. F/M meets EI/IP 6th edition specifications.
DEADMAN CONTROL: Deadman handle with 50’ cord.
PRESSURE CONTROLS: Hose and control valve and pressure
controlling coupler.
METER: 450 GPM rated with large numeral reset counter and totalizer, registers in whole U.S. gallons.

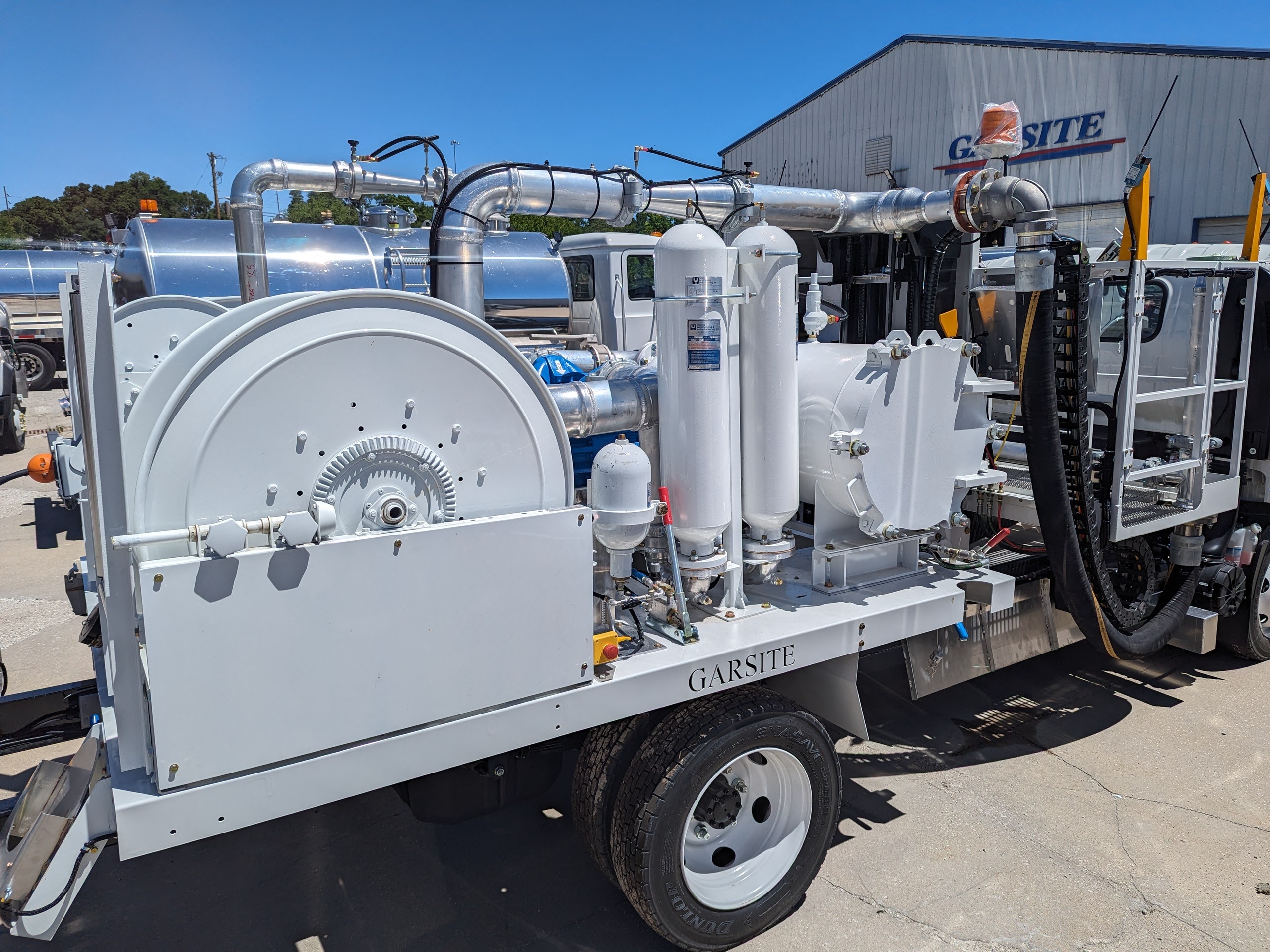

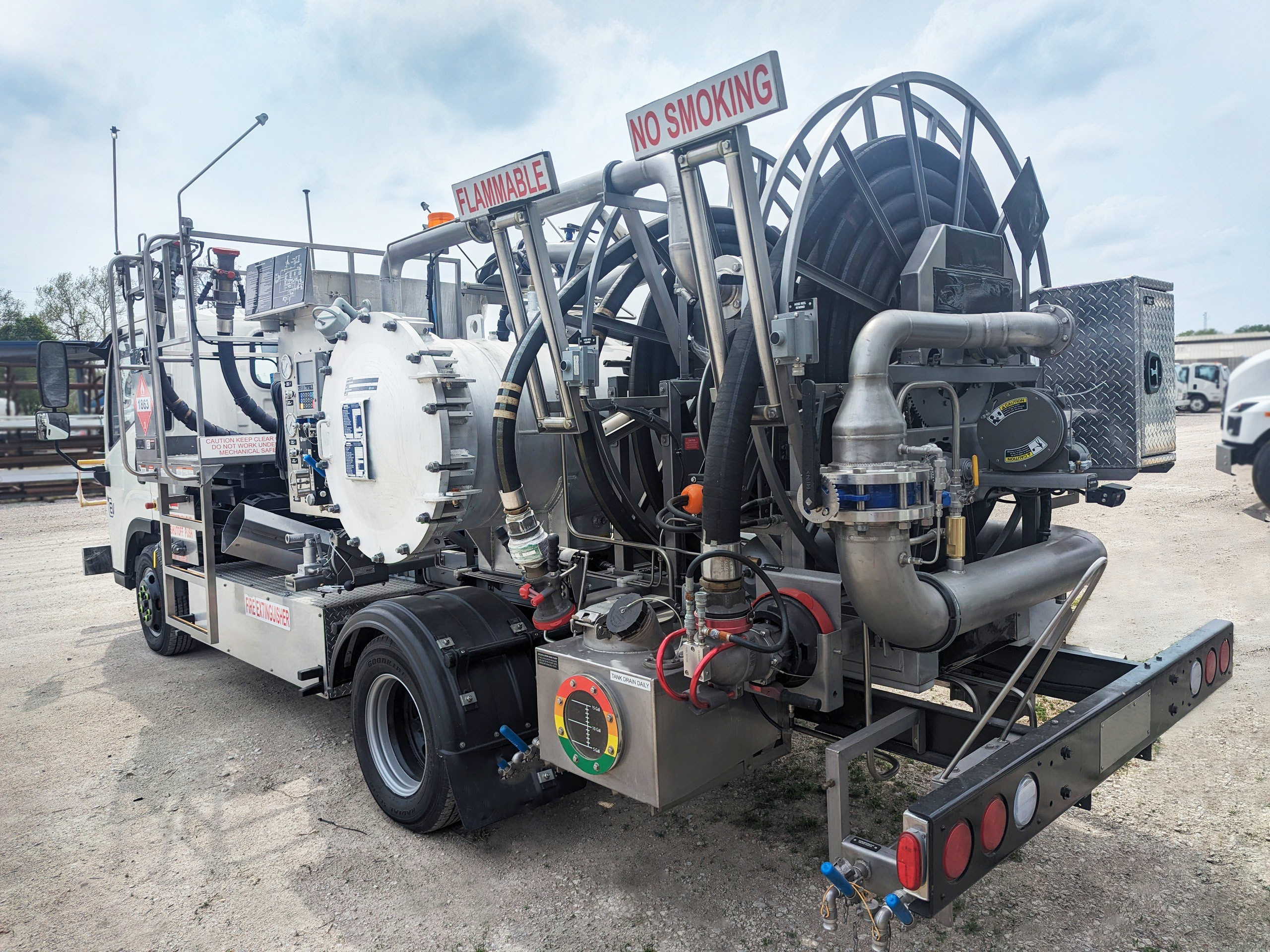

SINGLE WRAP FUELING HOSE REEL: Aluminum single wrap style, manual rewind hose reel sized for 2 ½” x 50’ hose, non-ferrous internals. A shut-off valve is installed immediately upstream of the reel.
FUELING HOSE: One 2” x 50’ aviation fueling hose with N/R male couplings, certified to API 1529 specifications.
UNDERWING NOZZLE: One standard 3-lug underwing nozzle with HECV, 100 mesh strainer and swivel.
WRAP AROUND STYLE INLET HOSE: Includes 20’ of 2 ½” hose with non-removable male couplings, certified to API 1529 specifications.
PRODUCT RECOVERY TANK: 20 gallon capacity with fill opening and drain valve.

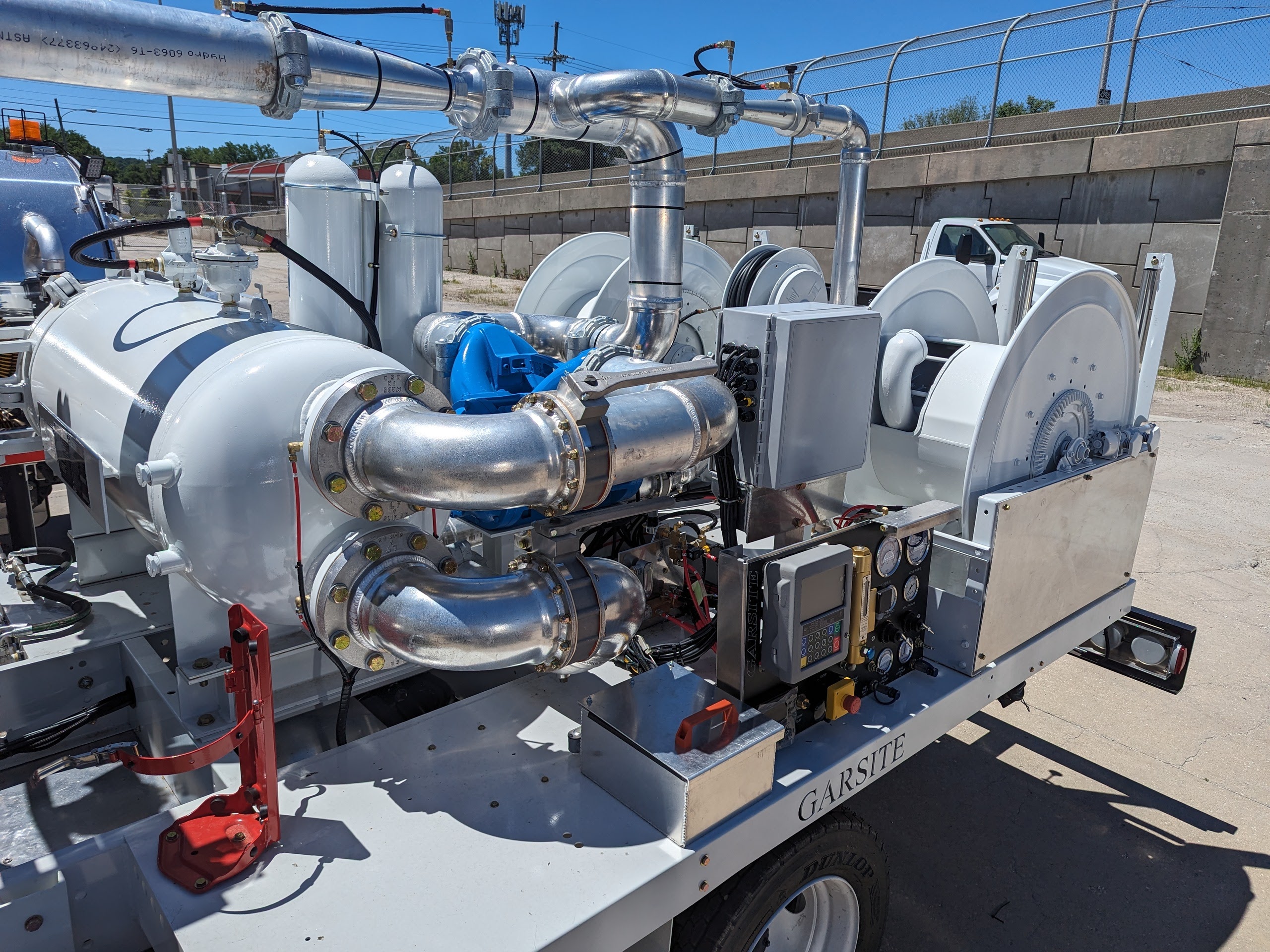

PIPING: Schedule 10 aluminum – 150 PSI rated working pressure.

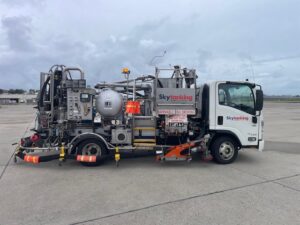

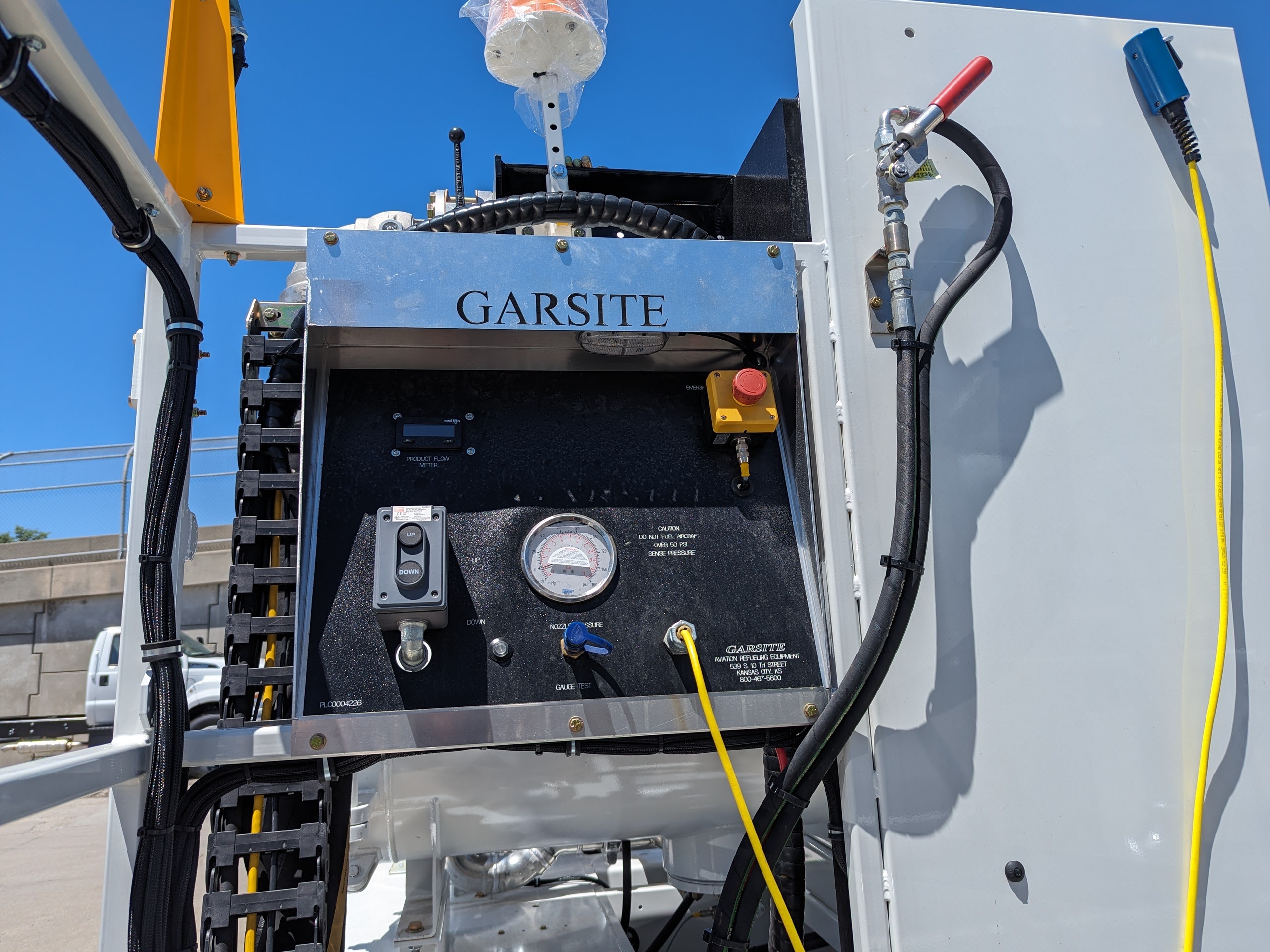

GAUGE PANEL: The panel will include a fuel sense pressure gauge, D/P gauge with purge valve, inlet pressure gauge, pressure regulator and emergency shutdown.
SAFETY FEATURES: Manual rewind static reel with 50’ cable and clip, brake interlock system, emergency shut down system and one fire extinguisher.
COMPLIANCE: Meets all applicable NFPA 407 codes. Design complies with ATA-103 requirements.

ADDITIONAL INFORMATION:

• Compliant with JIG-13, DOT 406, and NFPA 385 standards
• (3) Emergency shutoff systems
• (2) Static grounding reels
• (1) Lanyard reel
• Deadman handle with stainless steel cabinet and lock
• Pantograph system with ATN swivel joint
• All piping constructed from stainless steel SCH-10 seamless pipe; all joints are flanged
• All sense and drain lines constructed from stainless steel and clearly identified
• Spring-loaded ball valves on drain lines
• 4-liter visual sampler with SWD
• Automatic thermal relief system
• Beacon light mounted on top of the vehicle
• Camlock fittings with lockable caps on all drains
• Weatherproof LED floodlight installed near the fueling control panel
• Lockable aluminum storage box for basic tools and fuel samples
• Refueling appurtenance lamp switches mounted in a panel inside the vehicle cab
• Red four-winged, flagpole-mountable device
• (2) 20 lb fire extinguisher holders
• Stainless steel product recovery tank with 10″ fill lid, vent, glass windows, alarm, high-level sensor, and spring-loaded drain
• Delphi connections for easy maintenance
• All electrical connections are marked and identified
• Full LED lighting system

OPTIONS: The above-listed items are for a standard Garsite refueler. All units can be customized to fit your specific requirements. Please contact your Garsite representative for a complete list of available options and configurations.

ASME ‘U’ and ‘R’ Certified Facility
