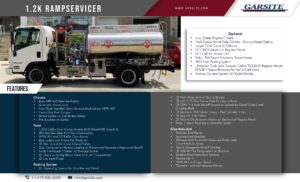

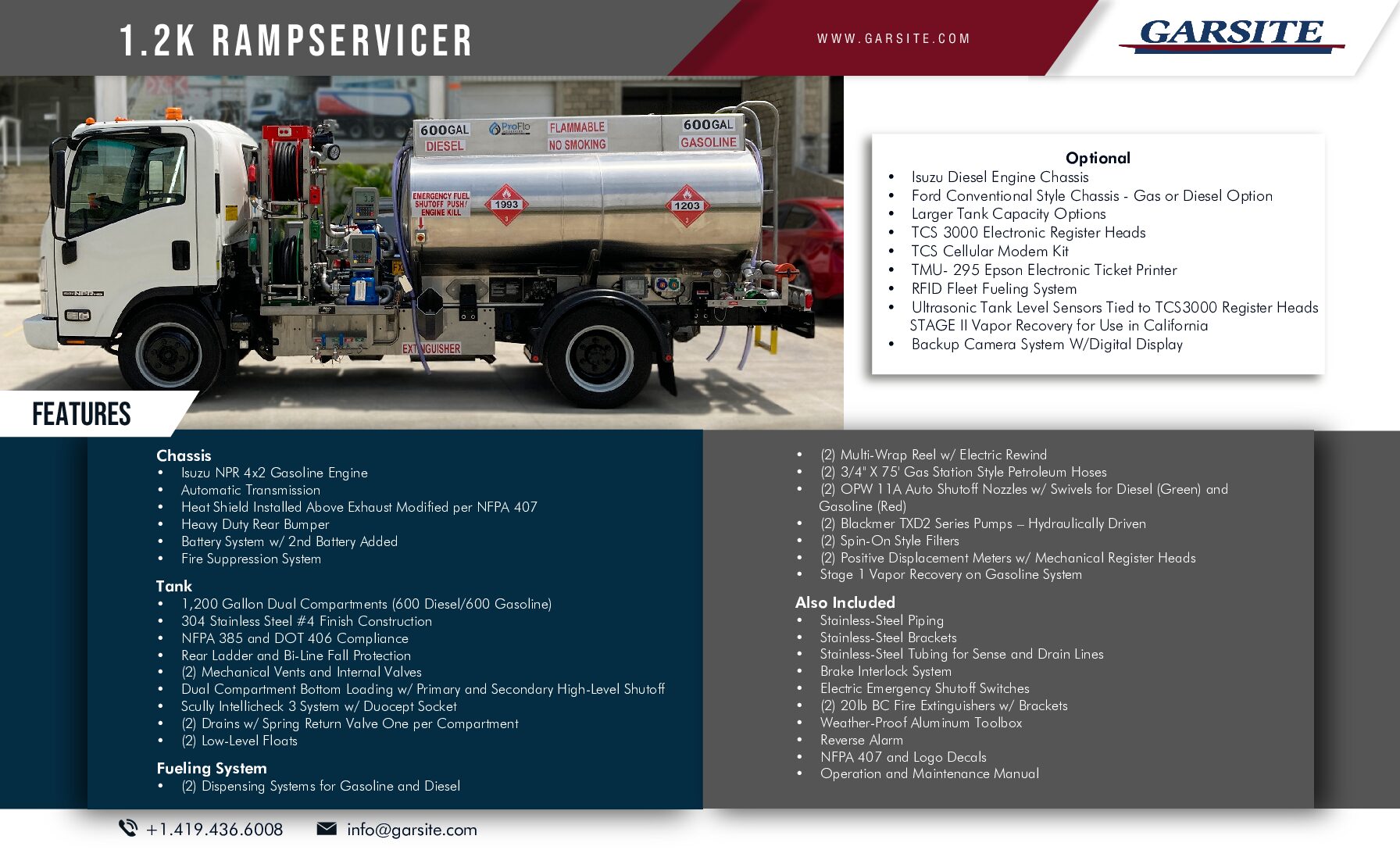

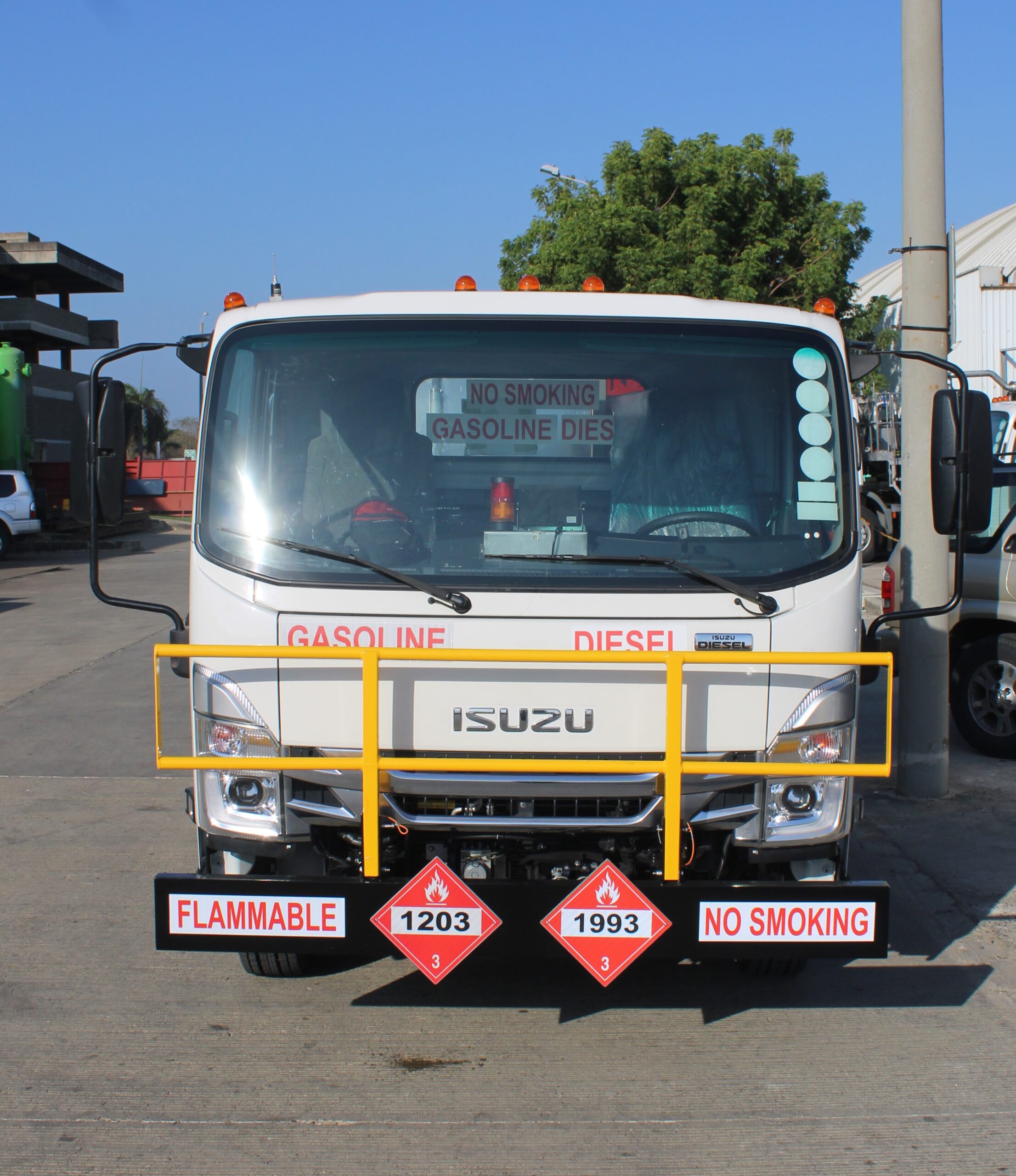

Garsite 1,200 Gallon Ramp Servicer

Chassis
• Isuzu NPR 4×2 Gasoline Engine
• Automatic Transmission
• Heat Shield Installed Above Exhaust Modified per NFPA 407
• Heavy Duty Rear Bumper
• Battery System w/ 2nd Battery Added
• Fire Suppression System

Tank

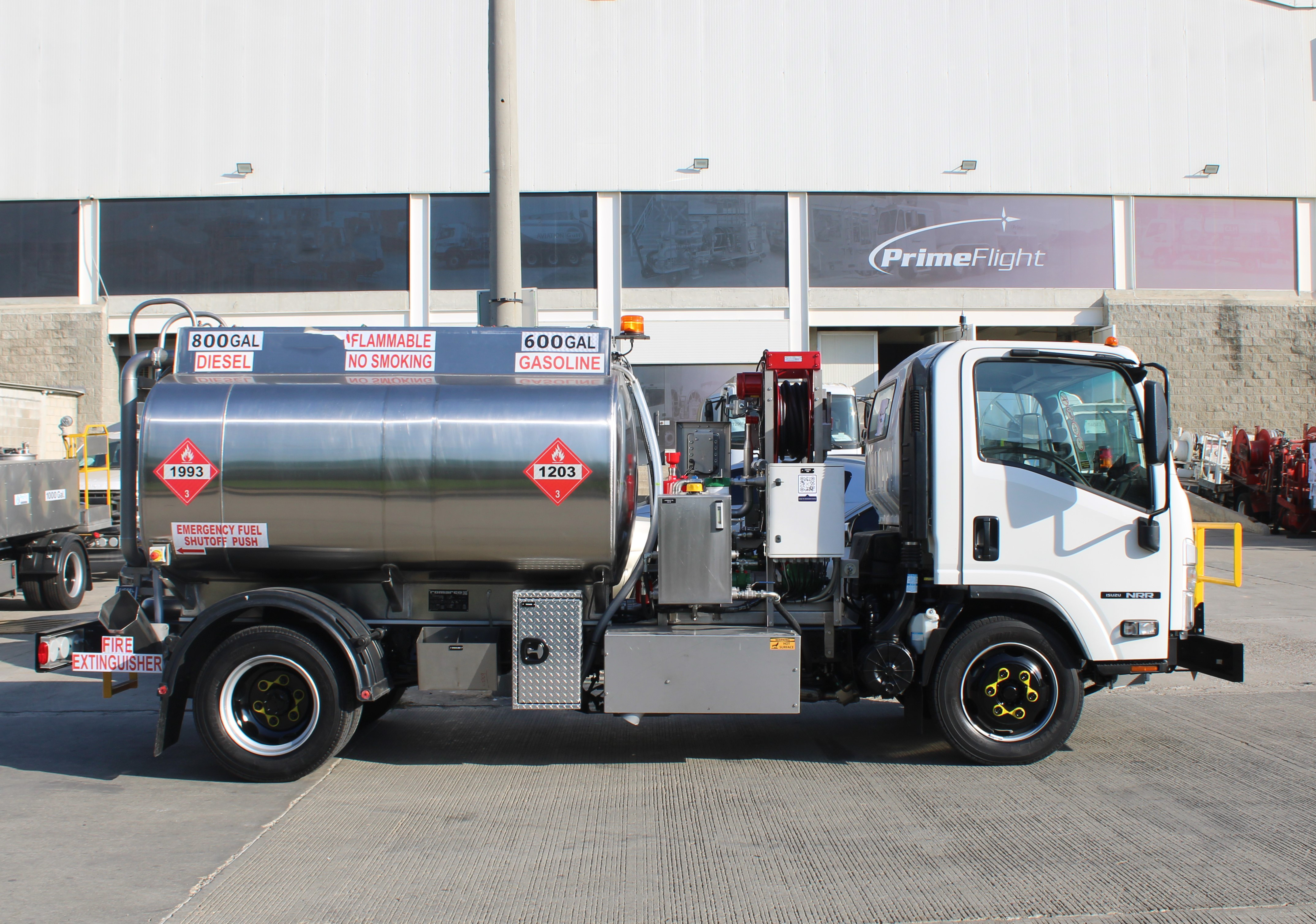

• 1,200 Gallon Dual Compartments (600 Diesel/600 Gasoline)
• 304 Stainless Steel #4 Finish Construction
• NFPA 385 and DOT 406 Compliance

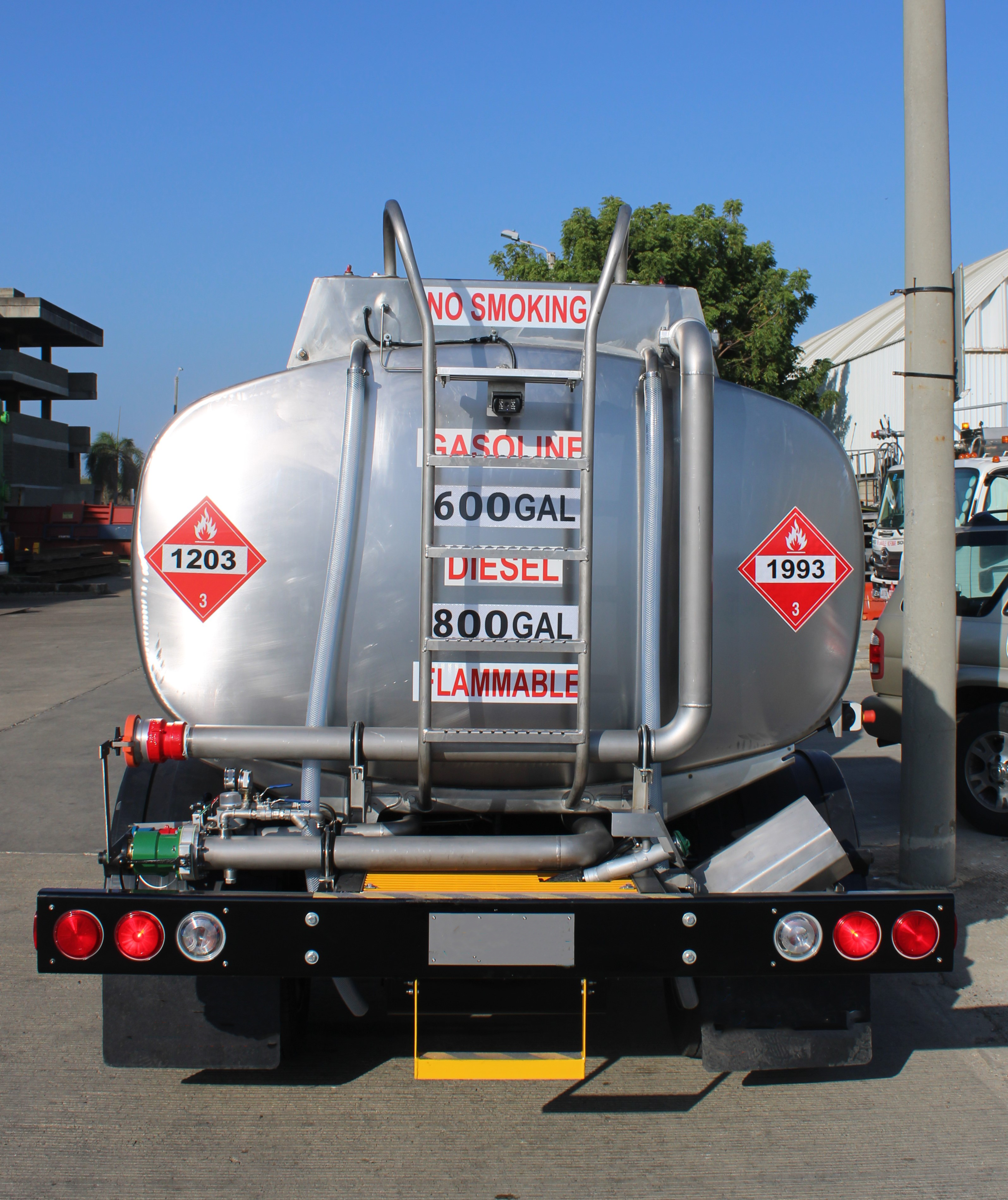

• Rear Ladder and Bi-Line Fall Protection
• (2) Mechanical Vents and Internal Valves
• Dual Compartment Bottom Loading w/ Primary and Secondary High-Level Shutoff
• Scully Intellicheck 3 System w/ Duocept Socket
• (2) Drains w/ Spring Return Valve One per Compartment
• (2) Low-Level Floats

Fueling System
• (2) Dispensing Systems for Gasoline and Diesel
+1.419.436.6008
• (2) Multi-Wrap Reel w/ Electric Rewind
• (2) 3/4″ X 75′ Gas Station Style Petroleum Hoses
• (2) OPW 11A Auto Shutoff Nozzles w/ Swivels for Diesel (Green) and
Gasoline (Red)
• (2) Blackmer TXD2 Series Pumps – Hydraulically Driven
• (2) Spin-On Style Filters
• (2) Positive Displacement Meters w/ Mechanical Register Heads
• Stage 1 Vapor Recovery on Gasoline System

Also Included
• Stainless-Steel Piping
• Stainless-Steel Brackets
• Stainless-Steel Tubing for Sense and Drain Lines
• Brake Interlock System
• Electric Emergency Shutoff Switches
• (2) 20lb BC Fire Extinguishers w/ Brackets
• Weather-Proof Aluminum Toolbox
• Reverse Alarm
• NFPA 407 and Logo Decals
• Operation and Maintenance Manual

Optional
• Isuzu Diesel Engine Chassis
• Ford Conventional Style Chassis – Gas or Diesel Option
• Larger Tank Capacity Options
• TCS 3000 Electronic Register Heads
• TCS Cellular Modem Kit
• TMU- 295 Epson Electronic Ticket Printer
• RFID Fleet Fueling System
• Ultrasonic Tank Level Sensors Tied to TCS3000 Register Heads
STAGE II Vapor Recovery for Use in California
• Backup Camera System W/Digital Display

Garsite experts work with you to design every unit to fit your specific requirements. Please contact a Garsite representative for a complete list of available options and configurations.
