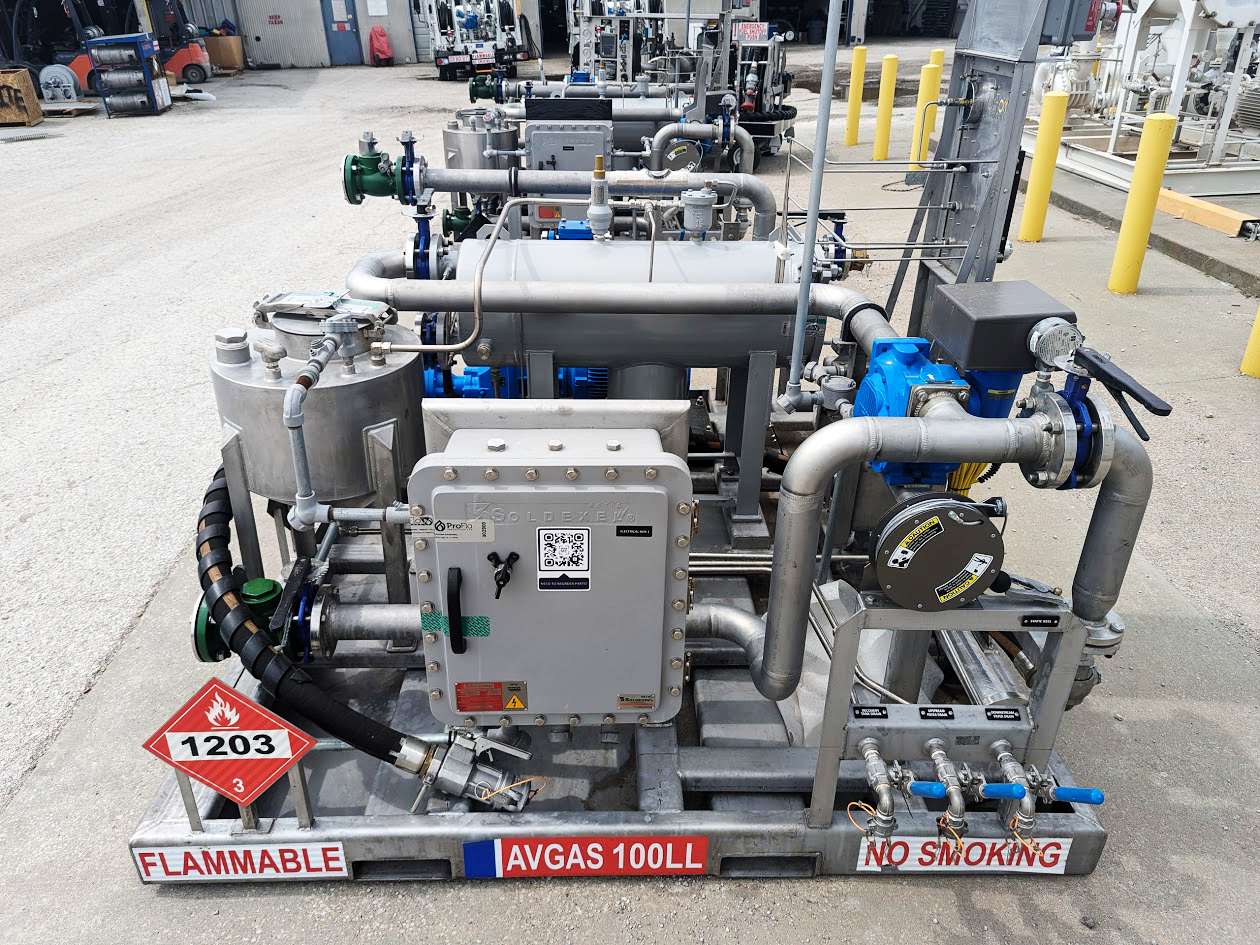

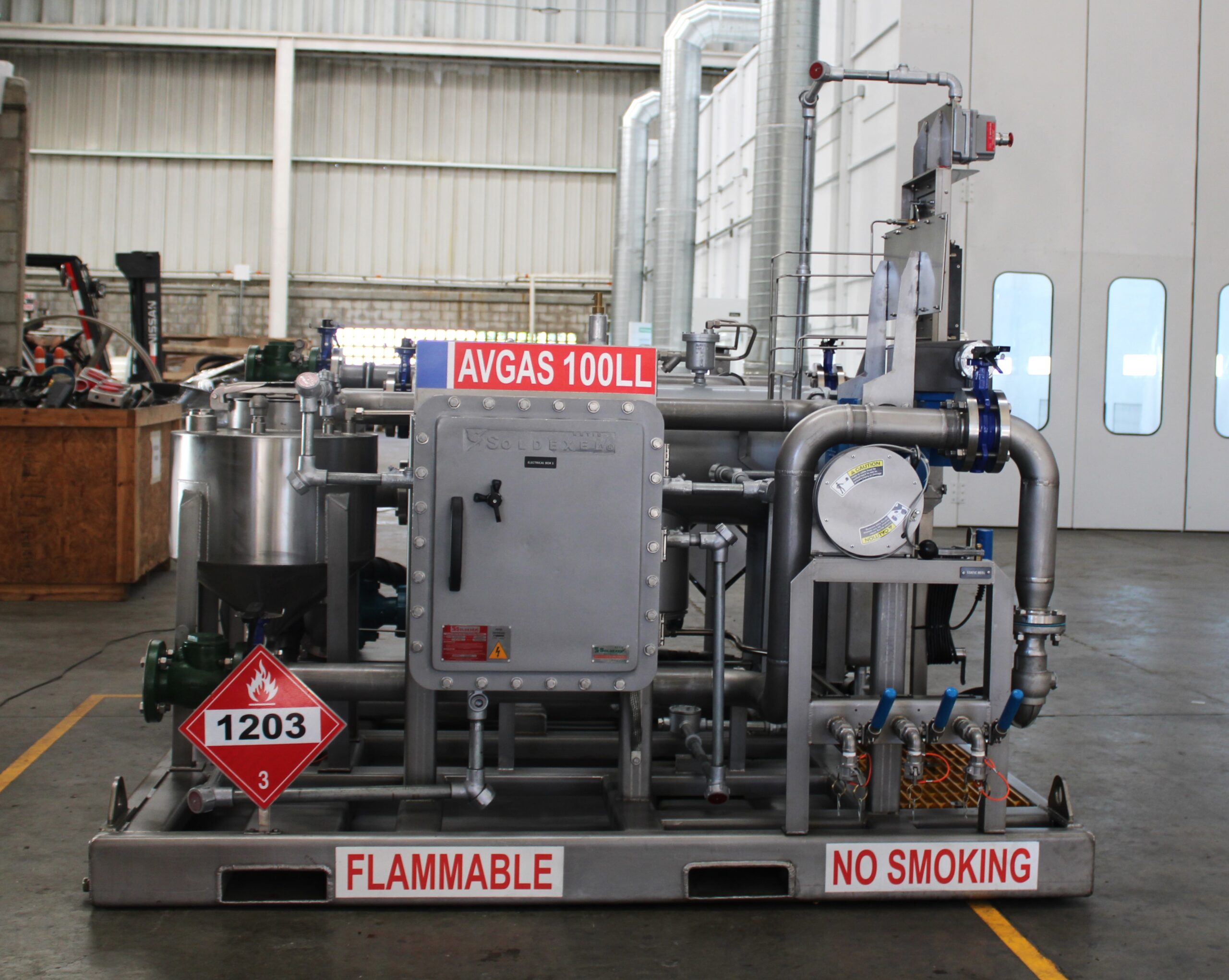

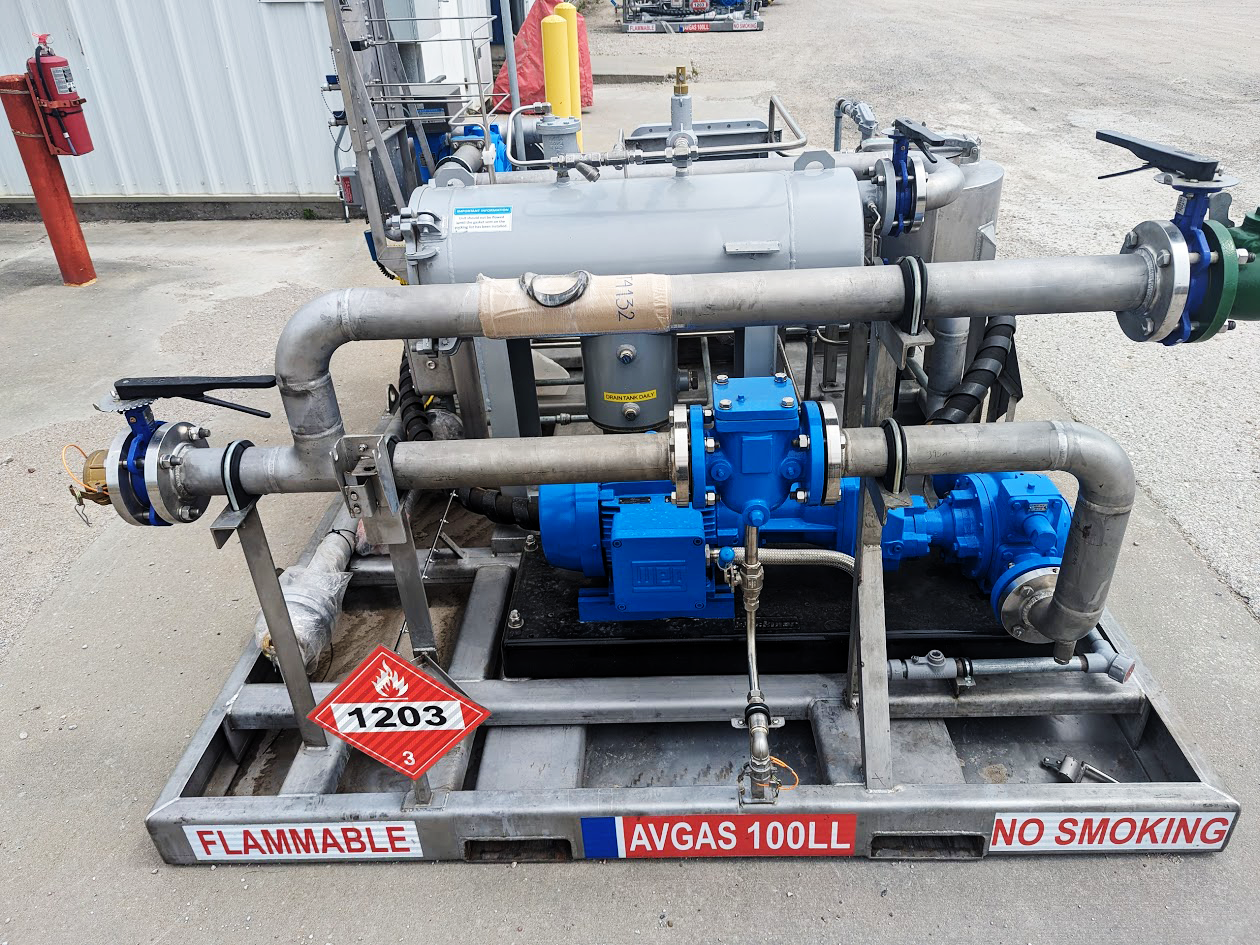

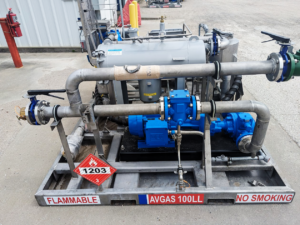

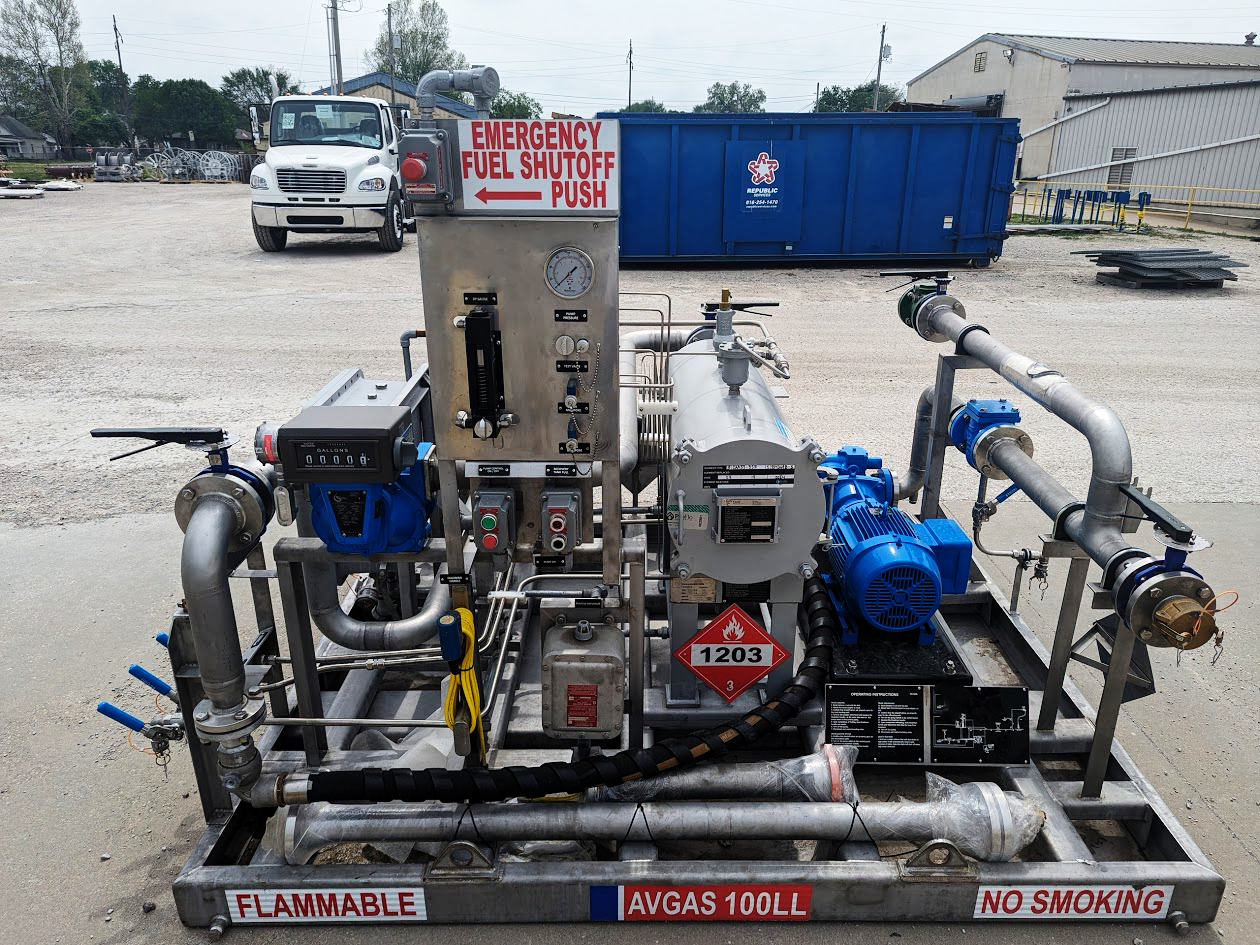

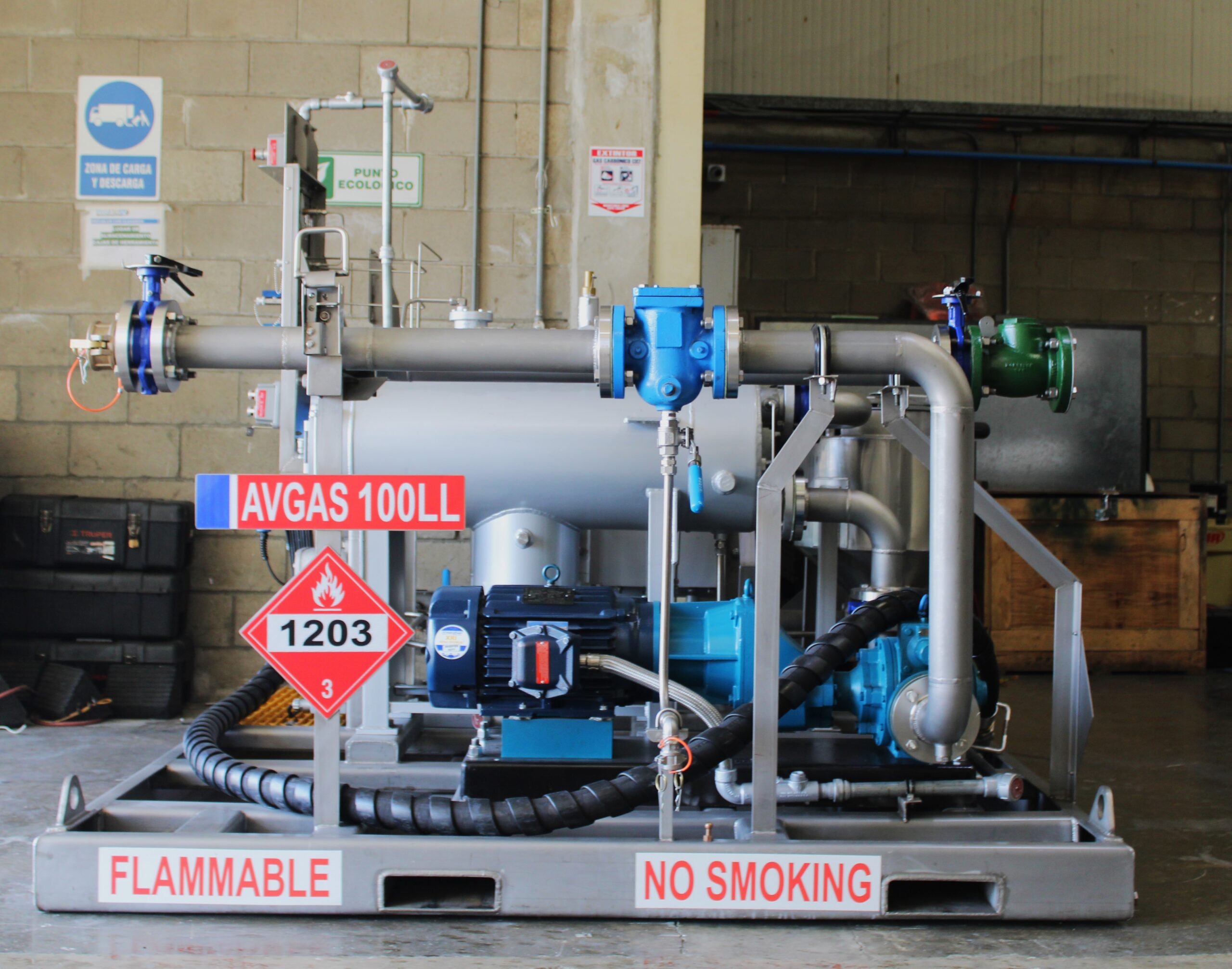

FEATURES: The 150 GPM Avgas Jet A Skid System are designed to offload transport, recirculate fuel and bottom load refuelers with direct into plane fueling as optional.

ADDITIONAL FEATURES: Blackmer GNXH3A pump with 3ph motor, TCS 700 series meter, facet latest edition FWS, Gammon Water Defense System, Deadman Controls w/25′ Cord and Handle, Transport Inlet Connection w/Shutoff Valve/Outlet Connection, Schedule 40 Stainless Steel Piping and Flanges, Stainless Steel Skid and Framework w/Spill Containment, Control Panel w/Emergency Stop, Pump Pressure Gauge, DP Gauge w/Test Valve and Pump Start/Stop Controls, 2.5″ x 15′ API 1529 Fueling Hose w/Underwing Nozzle for Bottom Loading Refuelers, Spring Rewind Static Reel w/50′ Coated Cable and 100-Amp Clamp, NFPA 407 Decal Package, (2) 20LB Fire Extinguishers, Electronic Operation and Maintenance Manual Supplied, Piping Stubbed for Tie-In of Additional Tank in the Future, and Morrison emergency valves.

OPTIONAL: Scully system as optional, and stainless steel construction with spill pan. Fully Enclosed Cabinet, Relaxation Chamber, Sump Saver, Direct Into Plane Fueling, Additive Injection, Scully Overfill Prevention, QTPod M4000 Self Serve Terminal, Veeder Root Tank Monitoring System, and Stainless Steel Remote Panel.

All units are designed and built to your specifications, or we will help you design a system to meet your operations specifications and needs. Contact our experts to discuss your options!
