Jet Fuel Above Ground Storage Tank & Pumping System

Tanks: 500 to 30,000 Gallons - Pumping Systems: 50 GPM in-to-plane to 600 GPM bulk loading

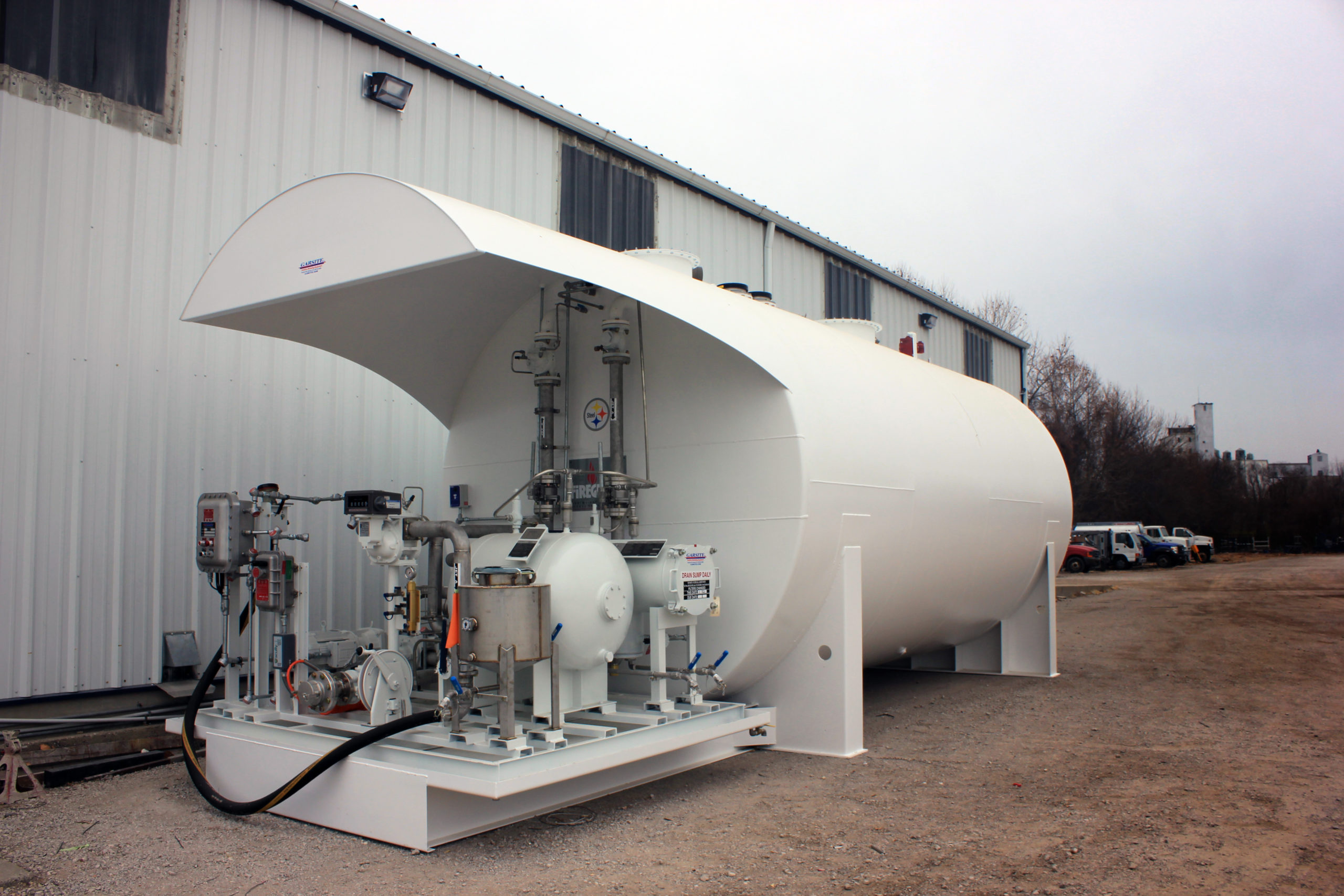

  • Garsite Above Ground Storage Tank - Fuel Farm
  • Garsite Avgas Fueling System

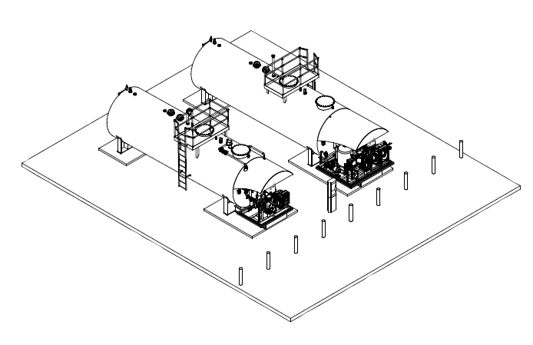

  • Garsite AST - Diagram

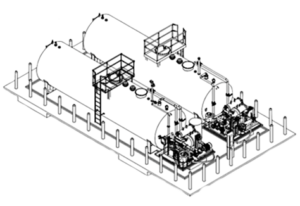

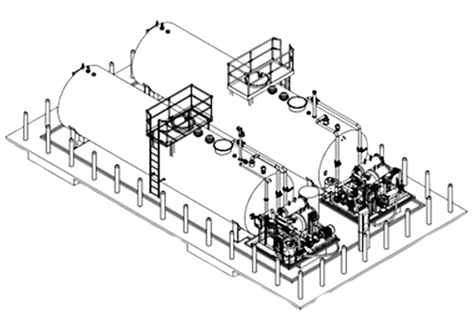

  • Garsite Above Ground Storage Tank - Diagram
  • Garsite Above Ground Storage Tank - Fuel Farm
  • Garsite Avgas Fueling System
  • Garsite AST - Diagram
  • Garsite Above Ground Storage Tank - Diagram

All Jet Fuel Farms include the following:

TANK: Above ground storage tanks available with Interior Stainless Steel Floating Suction, Overfill Valve, Clock Gauge with Alarm, Emergency Vent, Pressure Vent, Interstitial Leak Detection Gauge, Fill Piping with Check Valve, Strainer and 4” Cam-Lock Adapter, Fill-Rite Hand Sump Pump.

DISPENSING SYSTEM: Electronic Pump & Motor, Deadman, Filtration, Calibrated Meters, Hoses, Nozzles, and Much More.

For your convenience and a superior design we include:
– Through-head piping to reduce piping and connections from tank top piping.
– Nearly all components are housed under a protective canopy.
– Double-wall tank systems include an integral secondary containment and eliminate the need for a dike.

Garsite uses all stainless-steel piping for fueling systems and offers Stainless Steel Primary Above Ground Storage Tank. This package provides:
– Clean and dry fuel.
– Reduced maintenance expenses.
– Durable and lasting equipment.

All units are designed and built to your specifications, or we will help you design a system to meet your operations specifications and needs. Contact our experts to discuss your options!

Check out our product brochure: Garsite AST Brochure – 2021

  • There are no features available
Truck Type: Above Ground Storage Tank
Exterior Color: White
