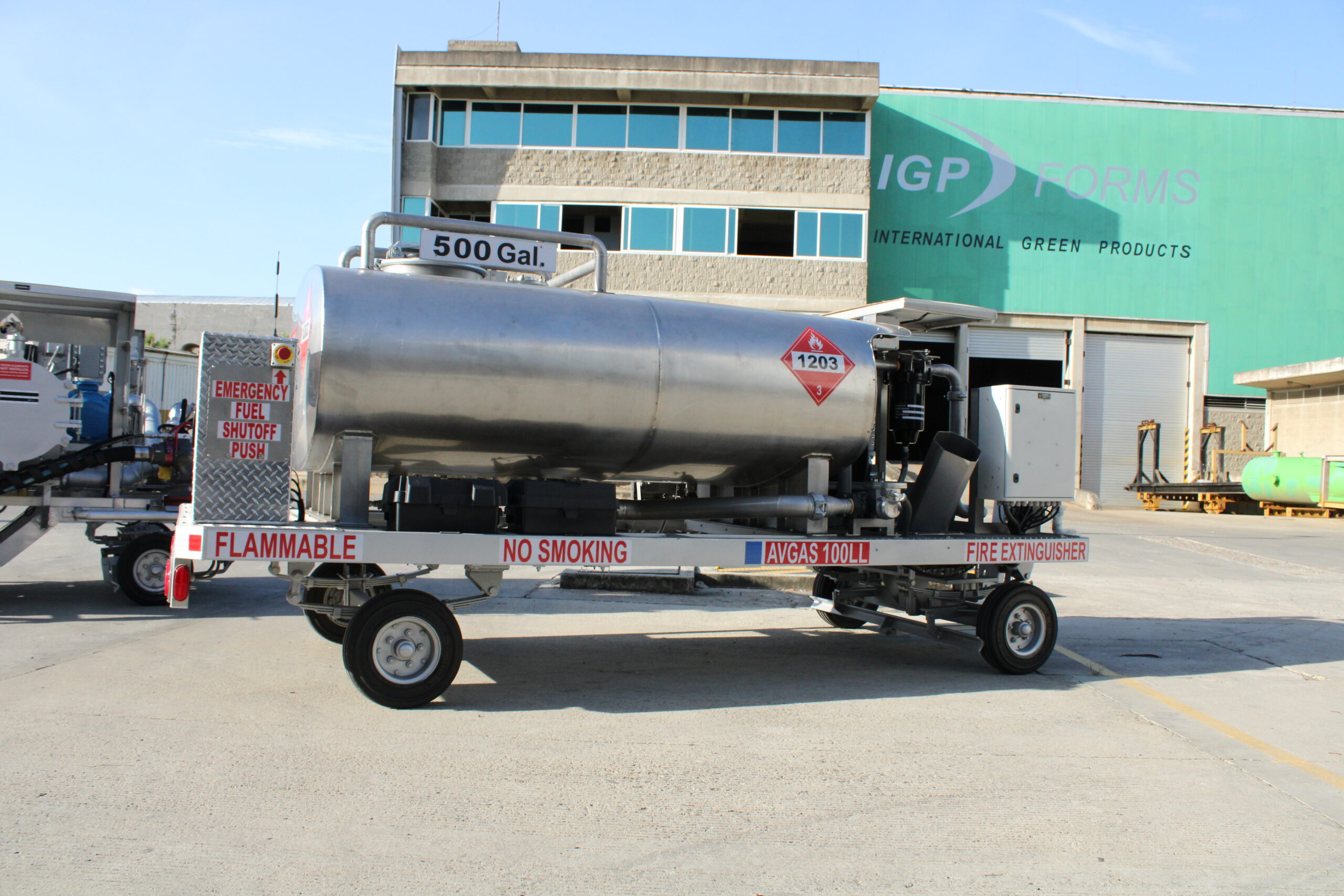

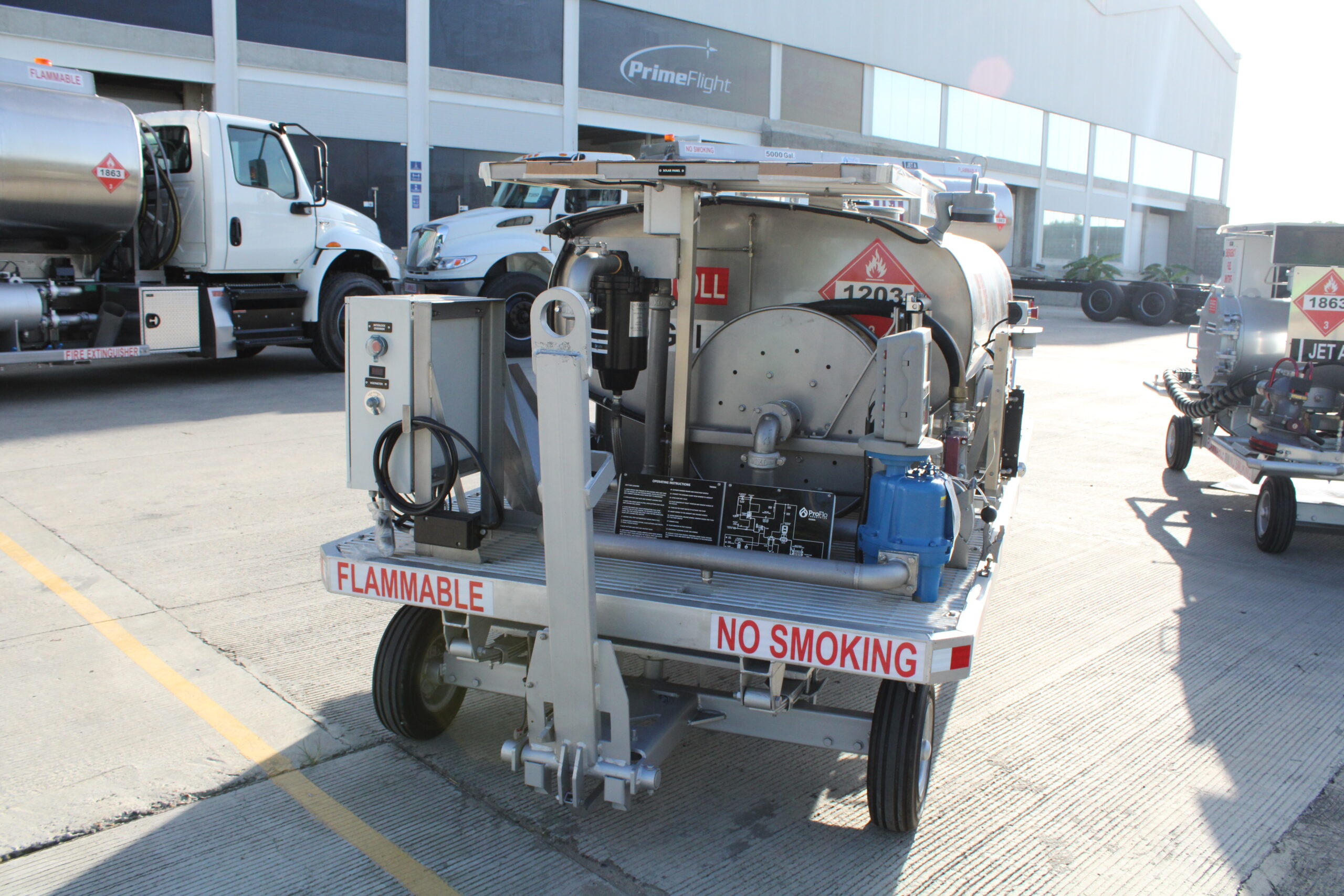

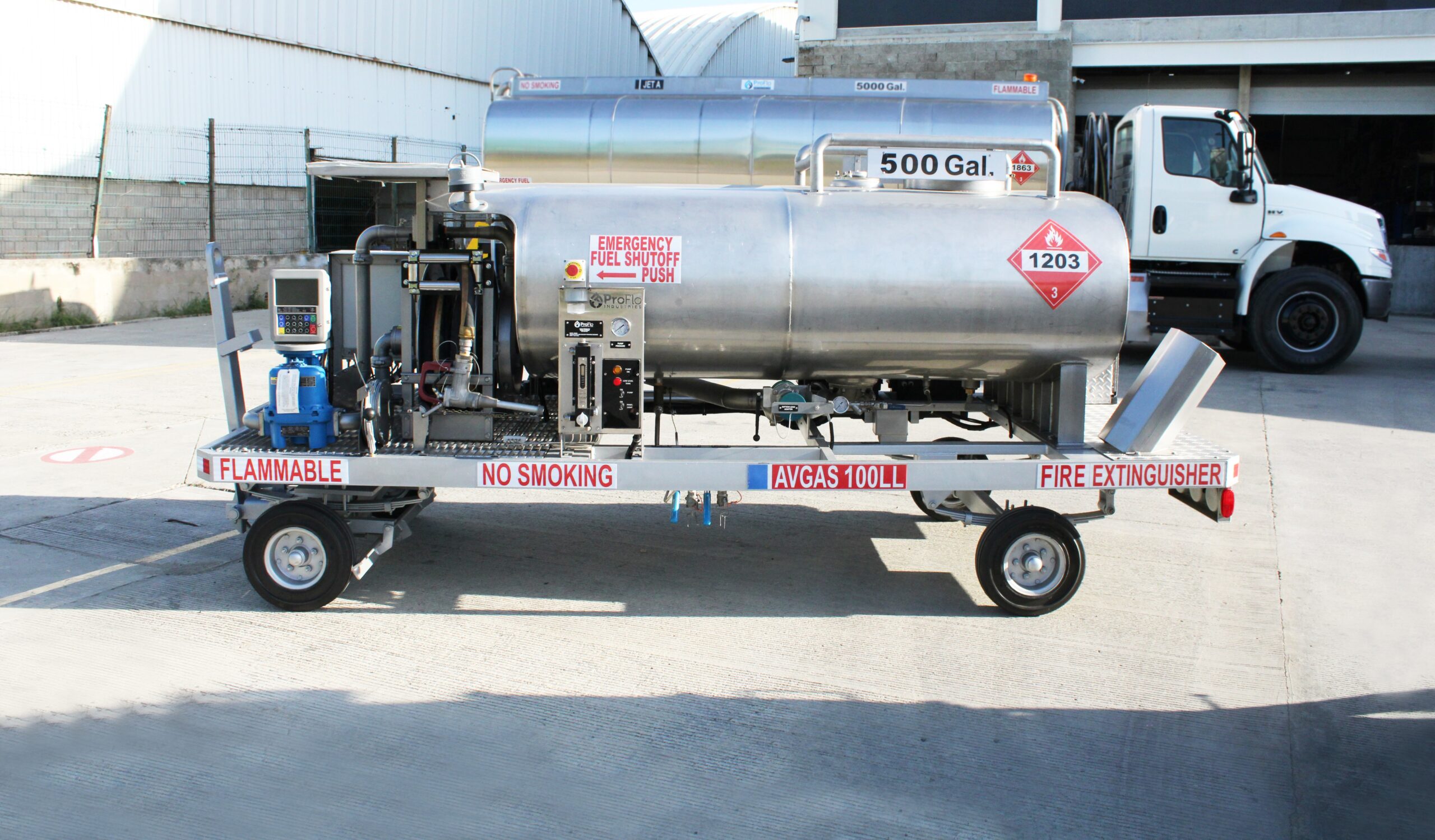

Towable Avgas Bowser

500 Gallon / 20 GPM (75 LPM)

Garsite has a new 500-gallon Towable Avgas Bowser in stock and available for immediate delivery.

FEATURES: Four wheel steerable undercarriage with tongue brake, 500-gallon (1,890 Liter) stainless steel tank, bottom load with high-level shutoff, canister style filter vessel and optional feature of cellular modem. Fully integrated solar-powered system; includes battery for the interlock system.

FILTER / MONITOR: Electric Pump Rated @ 20 GPM (75 LPM) with a direct reading differential pressure gauge, purge valve, pressure relief valve, air eliminator and drain valves. F/M meets EI/IP 6th edition specifications.
PRESSURE CONTROLS: Hose and control valve and pressure
controlling coupler.
METER: TCS Meter w/TCS3000 electronic register head, large numeral reset counter and totalizer, registers in whole U.S. gallons.
FUELING HOSE: Includes Hannay Hose Reel w/50′ API fueling hose and OPW overwing nozzle
PRODUCT TANK: 500-gallon (1,890 Liter) Stainless Steel Tank
GAUGE PANEL: The panel will include a fuel sense pressure gauge, D/P gauge with purge valve, inlet pressure gauge, pressure regulator and emergency shutdown.
SAFETY FEATURES: Manual rewind static reel with 50’ cable and clip, brake interlock system, emergency shut down system and one fire extinguisher.
COMPLIANCE: Meets all applicable NFPA 407 codes. Design complies with ATA-103 requirements.
OPTIONS: The above-listed items are for a standard Garsite equipment. All units can be customized to fit your specific requirements. Please contact your Garsite representative for a complete list of available options and configurations.

ASME ‘U’ and ‘R’ Certified Facility

  • Airbags
  • Air Conditioning
  • Reversing Camera
  • Roll-over Protection
Year: 2022
Truck Type: Towable Unit
Condition: Brand New
Location: Kansas City, KS
